When comparing an extraction fan vs exhaust fan, it’s easy to assume the two terms mean exactly the same thing. In industrial ventilation, they’re often used interchangeably, but depending on the application they can refer to different ventilation approaches. Understanding these differences can help you choose a solution that’s better suited to your facility’s operational requirements.
This guide explains the differences between extraction fans and industrial exhaust fans, where each is commonly used, and the key factors to consider when selecting the right ventilation solution.
Why choosing the right ventilation solution matters
Every industrial facility has different ventilation requirements. The contaminants produced, the building layout and the operational processes all influence how air moves through the space. Selecting the right ventilation solution helps create healthier working environments while supporting equipment performance and operational efficiency.
According to Safe Work Australia, employers should manage exposure to airborne contaminants such as dust, fumes, vapours and gases to help maintain a safe and healthy workplace. Effective industrial ventilation plays an important role in controlling these hazards by removing contaminants from the work environment before they can affect workers.
An effective ventilation system doesn’t simply move air—it removes unwanted heat and airborne contaminants while maintaining balanced airflow throughout the facility. Depending on the application, this may involve removing heat from large buildings, extracting dust or fumes at their source, or improving overall air circulation.
Rather than focusing on the type of fan alone, it’s important to first understand the ventilation challenge you’re trying to solve. Once the source of the problem is identified, it’s much easier to determine the most appropriate extraction or exhaust solution.
Extraction fan vs exhaust fan at a glance
| Extraction fan | Exhaust fan |
| Refers broadly to removing contaminated, stale or heated air from a space. | A type of industrial fan designed to discharge unwanted air from a building or process. |
| Can describe localised extraction or whole-building ventilation. | Commonly used for general building ventilation and heat removal. |
| May remove dust, fumes, vapours, moisture, heat or odours. | Often selected for high-volume airflow in factories, warehouses and industrial facilities. |
| Focuses on the ventilation objective. | Focuses on the equipment performing the extraction. |
Because industrial facilities differ significantly in their processes and layouts, there is rarely a one-size-fits-all solution. In many applications, multiple ventilation methods work together to achieve the desired outcome.
For example, a manufacturing facility may use:
- Roof-mounted exhaust fans to remove accumulated heat. Â
- Wall-mounted exhaust fans to improve cross ventilation. Â
- Air circulators to distribute fresh air throughout the building. Â
- Local extraction equipment to capture contaminants directly at their source. Â
Working together, these systems provide more effective ventilation than relying on a single fan type alone.
Which solution is best for different industrial applications?
Rather than choosing between two names, it’s more practical to match the ventilation solution to the challenge you’re trying to solve.
Different industrial environments generate different contaminants, so you should design the ventilation system around the specific application.
| Facility challenge | Recommended ventilation approach | Fanquip solutions |
| Excess heat throughout a warehouse or factory | Whole-building exhaust ventilation | Profile Base Hooded Roof Fans, Vertical Discharge Roof Fans |
| General stale air and poor airflow | Building exhaust combined with air circulation | Roof Fans, Wall Plate Exhaust Fans, Air Circulators |
| Dust generated during manufacturing | Extraction combined with general ventilation | Wall Plate Exhaust Fans, Axial Flow Fans |
| Welding fumes or localised airborne contaminants | Source extraction close to the process | Heavy Industrial Mobile Fume Extractors |
| Moisture and humidity build-up | Continuous exhaust ventilation | Roof Exhaust Fans, Side Wall Exhaust Fans |
The table highlights an important point: the application should determine the ventilation solution not simply the terminology used to describe the fan.Â

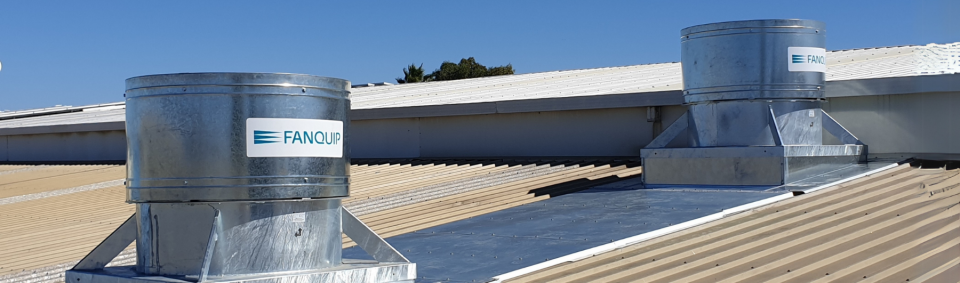

For example, if the primary challenge is removing excess heat from a warehouse, roof-mounted industrial exhaust fans are often an effective solution because hot air naturally rises. In contrast, facilities generating localised fumes or airborne contaminants may benefit from source extraction positioned close to the process before contaminants disperse throughout the building.
How do you determine which solution is right?Â
Although extraction fans and industrial exhaust fans are closely related, the most appropriate solution depends on the ventilation challenge you’re trying to solve. Rather than selecting a fan based on its name, it’s important to consider how the system will improve airflow and remove unwanted contaminants within your facility.
When assessing your ventilation requirements, consider the following questions.
What needs to be removed?
Start by identifying the primary issue.
- Excess heat
- Dust
- Welding fumes
- Steam or moisture
- Airborne contaminants
- General stale air
Facilities generating localised contaminants may require extraction close to the source, while buildings experiencing general heat build-up often benefit from whole-building exhaust ventilation.
Is the problem localised or throughout the building?
If contaminants are generated from a specific process, such as welding or chemical handling, local extraction may provide the most effective solution.
If heat builds up throughout a warehouse or manufacturing plant, industrial exhaust fans improve overall ventilation by removing hot or contaminated air from the building.
Could a combination of solutions provide better results?
In many industrial environments, extraction and exhaust systems work together rather than independently.
For example, a warehouse may use roof-mounted exhaust fans to remove heat while Air Circulators or HVLS Giant Fans improve air movement throughout occupied areas. Likewise, a manufacturing facility may combine local extraction with general exhaust ventilation to manage both airborne contaminants and overall indoor air quality.
The right solution is rarely determined by the fan type alone—it depends on how the ventilation system is designed to meet the specific requirements of the facility.
Every facility requires a different approach
While the terms extraction fan and exhaust fan are often used interchangeably, the right ventilation solution depends on your facility’s specific requirements rather than the terminology itself. Factors such as the type of contaminants being generated, building layout and airflow objectives all influence the most effective approach.Â
In many industrial environments, the best results come from combining local extraction with general exhaust ventilation to create a balanced and efficient airflow strategy. Designing the system around the application helps improve indoor air quality, worker comfort and overall operational performance.
At Fanquip, we work with industrial facilities across Australia to assess ventilation requirements and recommend practical extraction and exhaust solutions tailored to each application. Whether you’re upgrading an existing system or planning a new installation, our team can help identify the right approach for your facility.
FAQs
An extraction fan removes unwanted air, heat and airborne contaminants from a space. An exhaust fan is the equipment that performs this function. In industrial applications, people often use the two terms interchangeably.
Use an extraction fan when you need to remove dust, fumes, vapours, smoke or other airborne contaminants from a specific process or work area. Local extraction captures contaminants before they spread throughout the facility.
Use an industrial exhaust fan when you need to remove heat, stale air, moisture or airborne contaminants from an entire building. These fans improve ventilation in warehouses, factories and workshops by maintaining continuous airflow.
Yes. Many industrial ventilation systems combine local extraction with general exhaust ventilation. For example, a manufacturing facility may use local extraction to capture welding fumes while roof-mounted exhaust fans remove excess heat and improve airflow throughout the building.
Fanquip offers a wide range of industrial ventilation solutions, including roof exhaust fans, wall-mounted exhaust fans, axial flow fans, air circulators and heavy industrial mobile fume extractors.
