From: $4,245 Exc. GST
Finding the right solution is easy with our QuickBuild configurator. Use it to customise the fan to your specifications.
See the solution you need in the table below? Click the fan icon next to the option you’re after, and we’ll fill in the details so you can quickly add the fan to your cart and check out.
Note: Some custom products may not have a table available. Please enquire with our team to provide custom dimensions or specifications.
| Model No. | Size | Motor Power (kW) | Voltage |
|---|---|---|---|
| 13-15091SS | 900mm | 0.75kW | 240V |
| 13-15093SS | 900mm | 0.75kW | 415V |
| 13-15121SS | 1200mm | 1.5kW | 240V |
| 13-15123SS | 1200mm | 1.5kW | 415V |
| 13-15151SS | 1500mm | 2.2kW | 240V |
| 13-15153SS | 1500mm | 2.2kW | 415V |

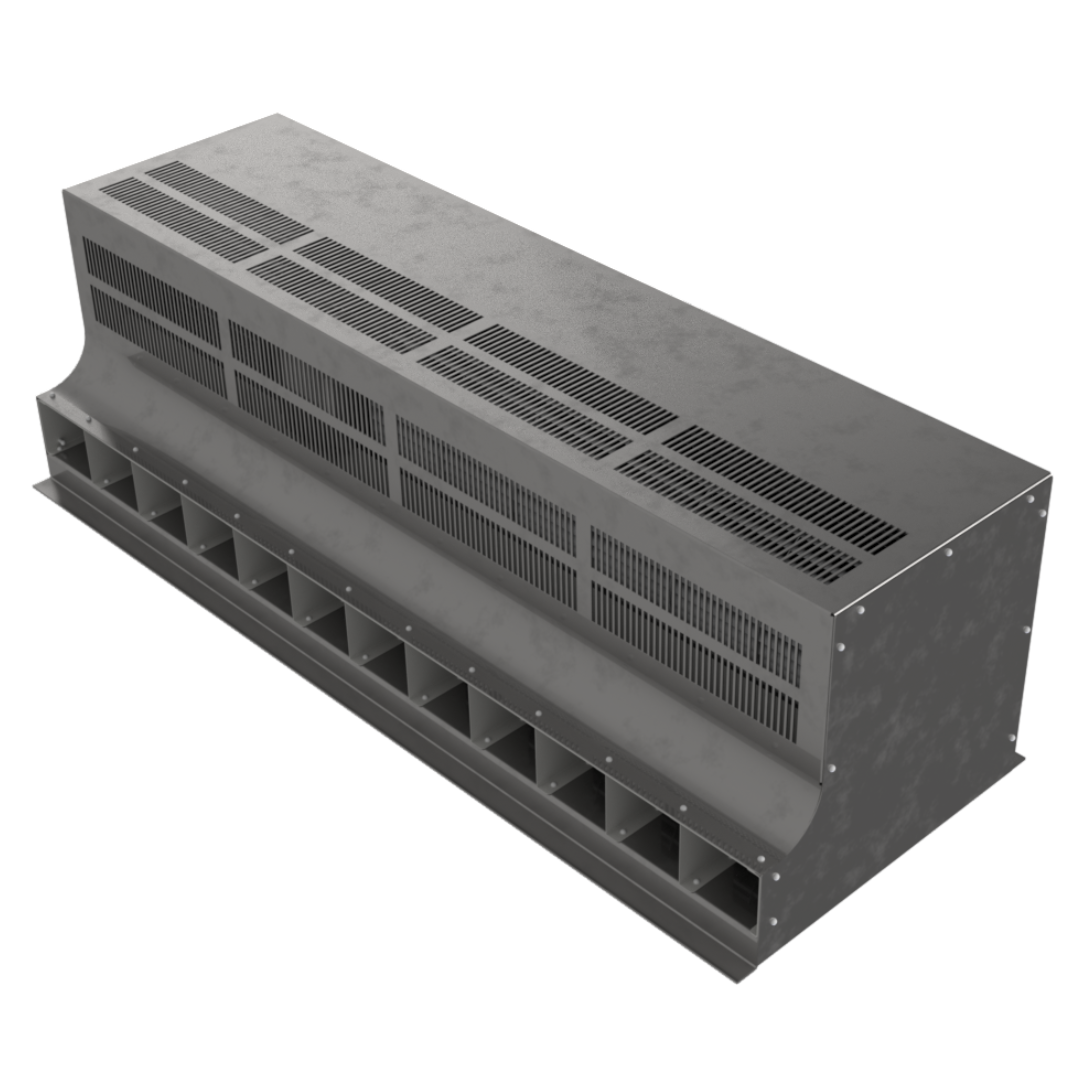

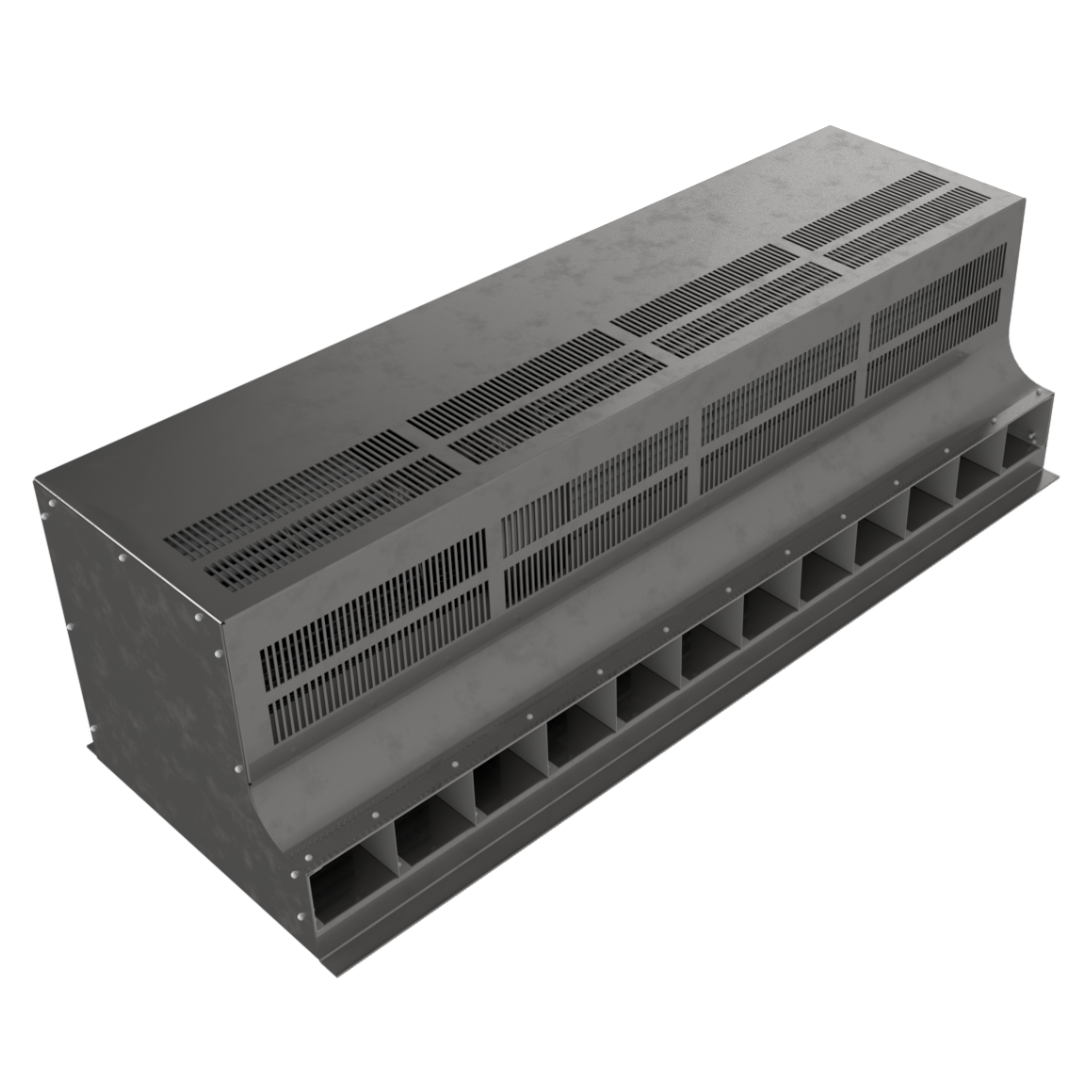

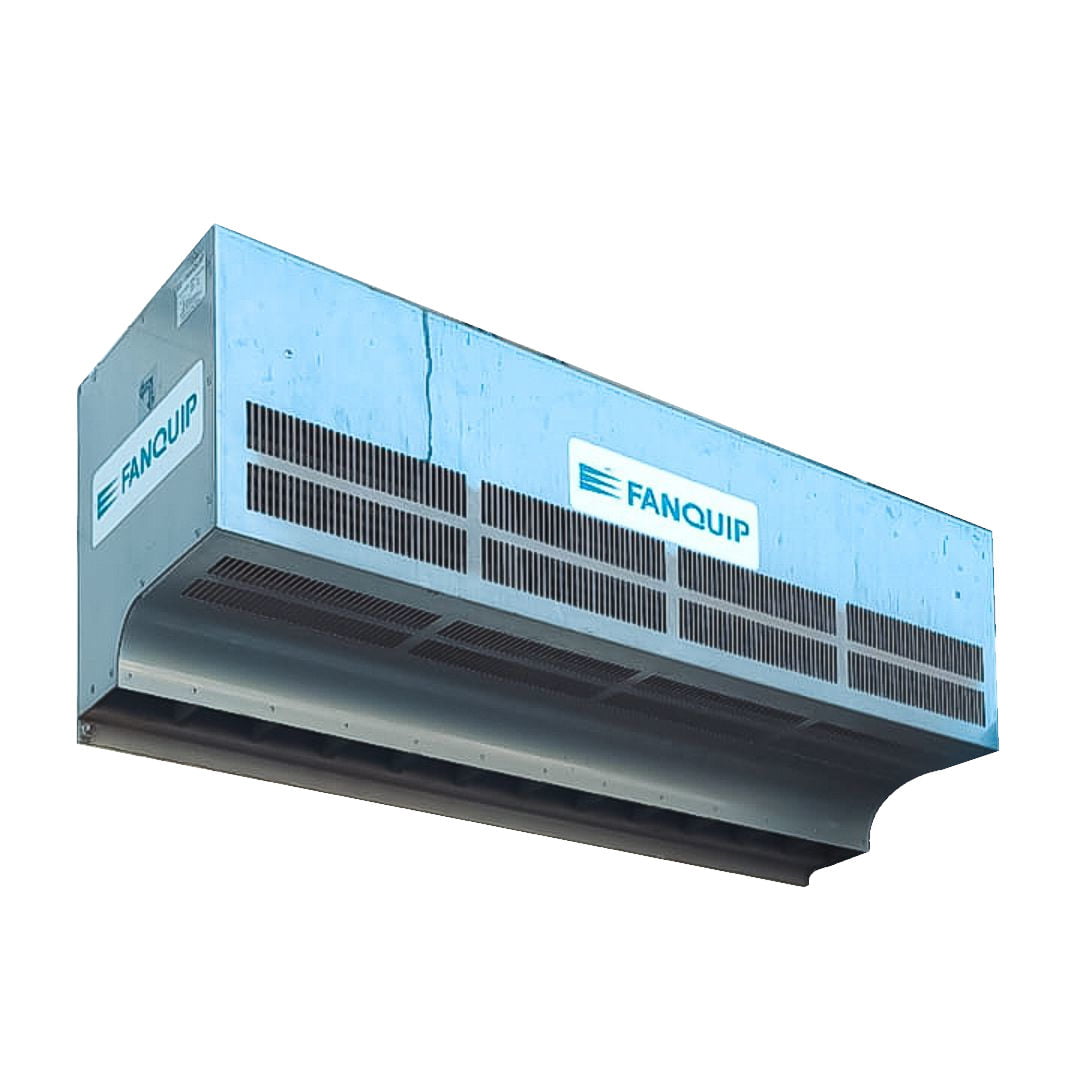

These Australian-made air curtains from Fanquip are engineered to deliver a powerful, consistent airflow across doorways and openings, helping to separate internal and external environments without the need for physical doors. By creating an invisible barrier of high-velocity air, they reduce unwanted air exchange while allowing uninterrupted access for people, vehicles, and equipment.

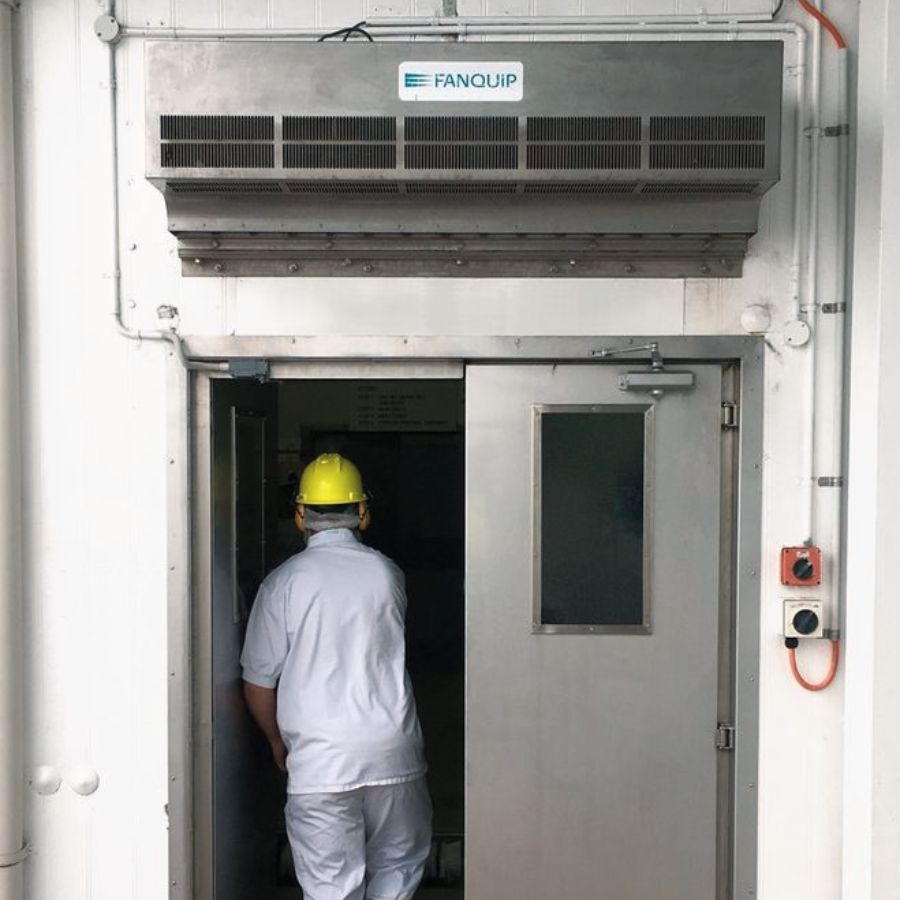

Built with stainless steel construction and rated to IP56 for washdown duty, these air curtains are ideal for demanding applications where durability, hygiene, and performance are critical. They are commonly installed above doorways to help retain cool air inside conditioned spaces while limiting heat ingress, dust, insects, and airborne contaminants.
Each unit uses a high-efficiency cross-flow fan design to generate a uniform air stream across the full width of the opening. This ensures reliable performance under different conditions, including temperature variation, pressure changes, and frequent door cycles. The system also assists in reducing the movement of exhaust fumes, odours, and airborne particles between zones.
Suitable for food processing, logistics, and other commercial spaces, these air curtains support insect control and help maintain a hygienic environment while meeting AQIS airflow requirements of 8 metres per second at 900mm above floor level.
Air curtains create a controlled stream of air across an opening that separates two environments. This airflow reduces the transfer of heat, dust, insects, and airborne contaminants without blocking access.
In many applications, air curtains reduce the need for doors by limiting air exchange while maintaining workflow efficiency. They are often used alongside doors or as a standalone solution, depending on site requirements.
Yes. The stainless steel construction and IP56 washdown rating make them suitable for hygienic and regulated environments where regular cleaning is required.
Multiple lengths, wattages, and voltages are available to suit doorway widths and installation requirements. If your application falls outside the listed options, custom configurations can be discussed with the Fanquip team.
Learn more about this product with our datasheet.

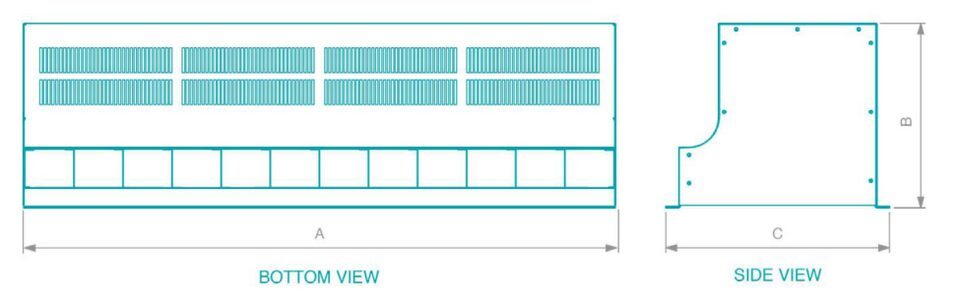

Learn more about this product with the image and table below.
| Length (mm) | A | B | C |
| 900 | 907 | 375 | 456 |
| 1200 | 1207 | 375 | 456 |
| 1500 | 1506 | 375 | 456 |

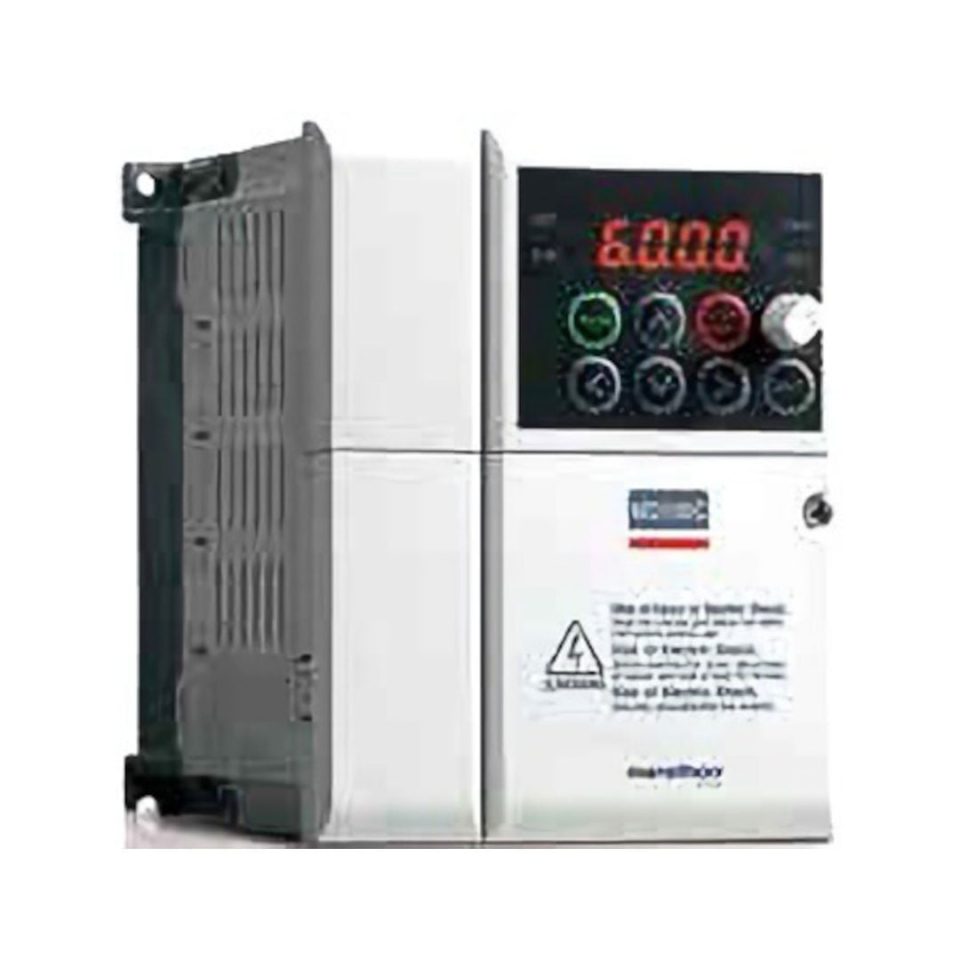

This product also comes with the following optional extras. To add these to your order, simply get in touch with our team to discuss.
Need this product customised to suit your specific industry application or for a special project? Contact our team today.
