Belt Drive Axial Flow Fan

0/5

From: $4,149 Exc. GST

Choose your options here, or select a model using the Product Details table below.

+

Sorry, this product is unavailable. Please choose a different combination. Or contact us with the form below.

Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

Product details

Axial fans create a high volume of airflow. Designed for the most demanding applications where the motor is required to be mounted outside the airstream. Ideal for the extraction of heat, steam, dust or highly flammable or corrosive fumes.

This product is made to order and has a 3 week lead time.

  • Aerodynamic belt tube
  • External grease points
  • GRP adjustable pitch blades
  • Heavy industrial rolled casing
  • Hot dip galvanised casing
  • IP55 Motor

Choose your Options Here.

Features

Accessories

Specifications

Dimensions

Options

Reviews

Enquiry

Datasheets

Features

  • Aerodynamic belt tube
  • External grease points
  • GRP adjustable pitch blades
  • Heavy industrial rolled casing
  • Hot dip galvanised casing
  • IP55 Motor

Accessories

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Enquire for price

0/5

Specifications​

Model No.Size (mm)Voltage (V)Weight (kg)Dimensions (cm)
12-30241,
12-30243,
12-30481,
12-30483,
12-40241,
12-40243,
12-40481,
12-40483,
12-50241,
12-50243,
12-60161,
12-60163,
12-60241,
12-60243,
12-70163,
12-70243,
12-80123,
12-80163,
12-80243,
12-10163,
12-12123,
12-15163
300mm,
400mm,
500mm,
600mm,
700mm,
800mm,
1000mm,
1200mm,
1500mm
240v,
415v
20 kg,
30 kg,
50 kg,
65 kg,
76 kg,
85 kg,
100 kg,
120 kg,
150 kg,
180 kg

Dimensions

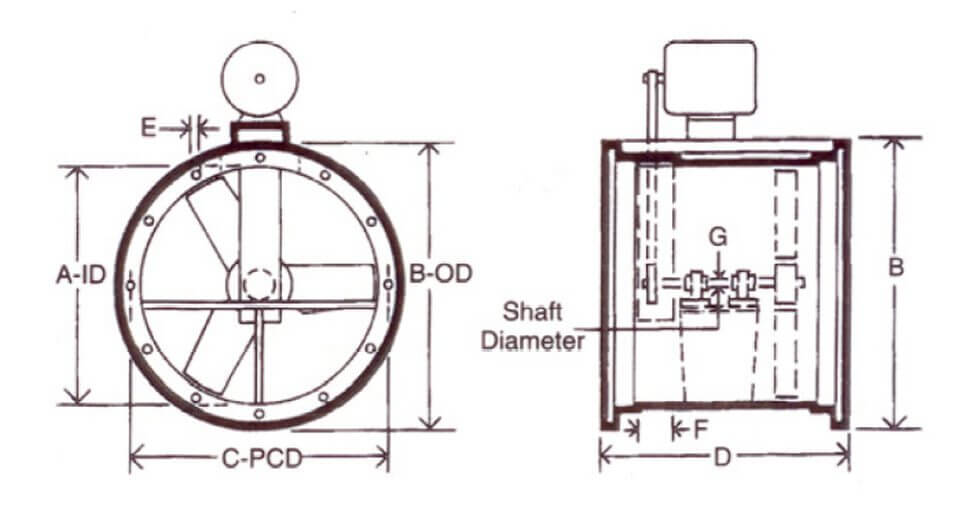

Dimensions for Fanquip's Belt Drive Axial Flow Fan
FAN DIAMETERABCDENO. OF EFG
3003103803454008610225
4004104804454108610225
5005105805455108610225
6006106956566108815025
7007107957566108815028
80081091086661010815028
900910101096561010815030
100010101115106581012815030
110011151215117081012815040
1200122013251276810121215040
1500152516301575910121215050

Options

  • Aluminium adjustable pitch blades
  • Aluminium or stainless steel casings
  • Exd
  • ExnA
  • Extd
  • Full range of accessories including angle rings
  • Hazardous location rated – Exe
  • Inlet and outlet finger guards
  • IP56 or IP66 motor
  • mounting feet and inlet cones
  • Powder coated finish
