From: $2,615 Exc. GST
Choose your options here, or select a model using the Product Details table below.
Sorry, this product is unavailable. Please choose a different combination. Or contact us with the form below.
Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

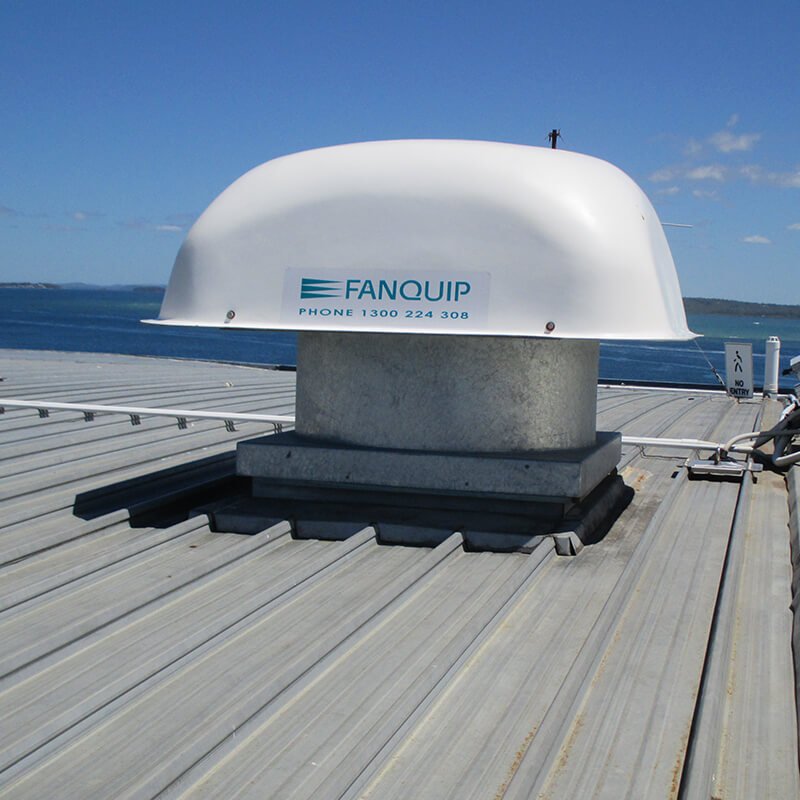

Australian made. Heavy industrial, weatherproof roof exhaust or supply air fan for the removal of heat, steam and dust in commercial and industrial applications.
| Model No. | Watts | Size | Poles | Voltage | Free Air Volume (L/s) | Full Load Amps (A) | Motor Speed (RPM) | Noise (dB(A) @ 3m) | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|
| 7-30241 | 0.37kW | 300mm | 240V | 600 | 2.4 | 1440 | 48 | Roof | |
| 7-30243 | 0.37kW | 300mm | 415V | 600 | 1.03 | 1440 | 48 | Roof | |
| 7-30481 | 0.55kW | 300mm | 2P | 240V | 1100 | 3.3 | 2880 | 62 | Roof |
| 7-30483 | 0.55kW | 300mm | 2P | 415V | 1100 | 1.4 | 2880 | 62 | Roof |
| 7-40241 | 0.55kW | 400mm | 4P | 240V | 1480 | 3.8 | 1440 | 50 | Roof |
| 7-40243 | 0.55kW | 400mm | 4P | 415V | 1480 | 1.63 | 1440 | 50 | Roof |
| 7-50161 | 0.37kW | 500mm | 6P | 240V | 1629 | 2.6 | 960 | 51 | Roof |
| 7-50163 | 0.37kW | 500mm | 6P | 415V | 1629 | 1.32 | 960 | 51 | Roof |
| 7-50241 | 0.75kW | 800mm | 4P | 240V | 2350 | 4.8 | 1440 | 60 | Roof |
| 7-50243 | 0.75kW | 500mm | 4P | 415V | 2350 | 1.94 | 1440 | 60 | Roof |
| 7-60161 | 0.37kW | 600mm | 6P | 240V | 3010 | 2.6 | 960 | 60 | Roof |
| 7-60163 | 0.37kW | 600mm | 6P | 415V | 3010 | 1.32 | 960 | 60 | Roof |
| 7-60241 | 1.1kW | 600mm | 4P | 240V | 4300 | 6.6 | 1440 | 68 | Roof |
| 7-60243 | 1.1kW | 600mm | 4P | 415V | 4300 | 2.6 | 1440 | 68 | Roof |
| 7-80123 | 0.55kW | 800mm | 8P | 415V | 5400 | 2.1 | 720 | 59 | Roof |
| 7-80163 | 1.1kW | 800mm | 6P | 415V | 6800 | 3 | 960 | 65 | Roof |
| 7-10123 | 1.5kW | 1000mm | 415V | 10000 | 4.2 | 720 | 63 | Roof | |
| 7-12123 | 2.2kW | 1200mm | 415V | 14000 | 6 | 720 | 69 | Roof |
| Model No. | Size (mm) | Voltage (V) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
7-30241, 7-30243, 7-30481, 7-30483, 7-40241, 7-40243, 7-50161, 7-50163, 7-50241, 7-50243, 7-60161, 7-60163, 7-60241, 7-60243, 7-80123, 7-80163, 7-10123, 7-12123 | 300mm, 400mm, 500mm, 800mm, 600mm, 1000mm, 1200mm | 240v, 415v | 30 kg, 36 kg, 62 kg, 75 kg, 100 kg, 150 kg, 180 kg |
| Model No. | Watts | Size | Poles | Voltage | Mounting Style |
|---|---|---|---|---|---|
| 7-30241 | 0.37kW | 300mm | 240V | Roof | |
| 7-30243 | 0.37kW | 300mm | 415V | Roof | |
| 7-30481 | 0.55kW | 300mm | 2P | 240V | Roof |
| 7-30483 | 0.55kW | 300mm | 2P | 415V | Roof |
| 7-40241 | 0.55kW | 400mm | 4P | 240V | Roof |
| 7-40243 | 0.55kW | 400mm | 4P | 415V | Roof |
| 7-50161 | 0.37kW | 500mm | 6P | 240V | Roof |
| 7-50163 | 0.37kW | 500mm | 6P | 415V | Roof |
| 7-50241 | 0.75kW | 800mm | 4P | 240V | Roof |
| 7-50243 | 0.75kW | 500mm | 4P | 415V | Roof |
| 7-60161 | 0.37kW | 600mm | 6P | 240V | Roof |
| 7-60163 | 0.37kW | 600mm | 6P | 415V | Roof |
| 7-60241 | 1.1kW | 600mm | 4P | 240V | Roof |
| 7-60243 | 1.1kW | 600mm | 4P | 415V | Roof |
| 7-80123 | 0.55kW | 800mm | 8P | 415V | Roof |
| 7-80163 | 1.1kW | 800mm | 6P | 415V | Roof |
| 7-10123 | 1.5kW | 1000mm | 415V | Roof | |
| 7-12123 | 2.2kW | 1200mm | 415V | Roof |

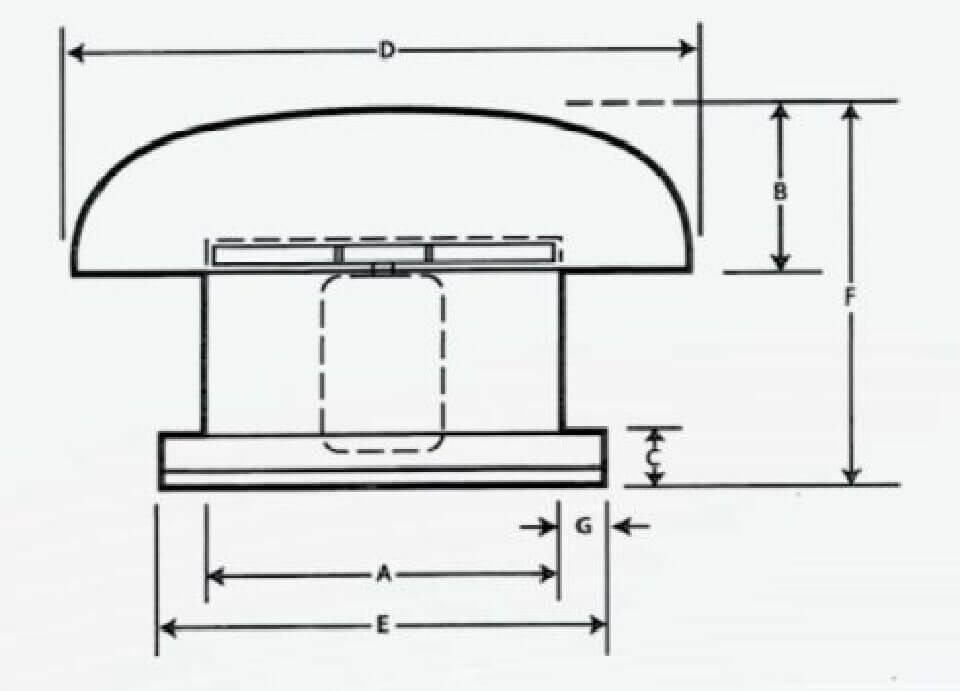

| Fan Diameter | A | B | C | D | E | F | G | HOOD NUMBER |
|---|---|---|---|---|---|---|---|---|
| 300 | 310 | 120 | 60 | 420 | 430 | 280 | 60 | 1 |
| 400 | 410 | 180 | 60 | 730 | 540 | 490 | 65 | 2 |
| 500 | 510 | 230 | 75 | 940 | 650 | 600 | 70 | 3 |
| 600 | 610 | 230 | 75 | 1060 | 760 | 600 | 70 | 3 |
| 800 | 810 | 485 | 75 | 1380 | 1060 | 850 | 120 | 4 |
| 1000 | 1010 | 470 | 80 | 1380 | 1260 | 920 | 120 | 5 |
| 1200 | 1220 | 450 | 100 | 1460 | 1460 | 960 | 115 | 6 |
