From: $2,044 Exc. GST
Finding the right solution is easy with our QuickBuild configurator. Use it to customise the fan to your specifications.
See the solution you need in the table below? Click the fan icon next to the option you’re after, and we’ll fill in the details so you can quickly add the fan to your cart and check out.
Note: Some custom products may not have a table available. Please enquire with our team to provide custom dimensions or specifications.
| Model No. | Size | Motor Power (kW) | Voltage | Free Air Volume (L/s) |
|---|---|---|---|---|
| 2-30481 | 300mm | 0.55kW | 240V | 1200 |
| 2-30241 | 300mm | 0.37kW | 240V | 654 |
| 2-30483 | 300mm | 0.55kW | 415V | 1200 |
| 2-30243 | 300mm | 0.37kW | 415V | 654 |
| 2-40481 | 400mm | 1.5kW | 240V | 2576 |
| 2-40241 | 400mm | 0.55kW | 240V | 1500 |
| 2-40483 | 400mm | 1.5kW | 415V | 2576 |
| 2-40243 | 400mm | 0.55kW | 415V | 1500 |
| 2-50241 | 500mm | 0.75kW | 240V | 2459 |
| 2-50243 | 500mm | 0.75kW | 415V | 2459 |
| 2-60241 | 600mm | 1.1kW | 240V | 4416 |
| 2-60243 | 600mm | 1.1kW | 415V | 4416 |
| 2-70243 | 700mm | 1.5kW | 415V | 5520 |
| 2-70163 | 700mm | 1.1kW | 415V | 5216 |
| 2-80243 | 800mm | 3kW | 415V | 3274 |
| 2-80123 | 800mm | 0.55kW | 415V | 3274 |
| 2-60161 | 800mm | 0.37kW | 240V | 3274 |
| 2-60163 | 800mm | 0.55kW | 415V | 5679 |
| 2-80163 | 800mm | 1.1kW | 415V | 7073 |
| 2-10163 | 1000mm | 2.2kW | 415V | 11600 |
| 2-12123 | 1200mm | 3kW | 415V | 16600 |
| 2-15163 | 1500mm | 5.5kW | 415V | 25500 |
| 2-18123 | 1800mm | 11kW | 415V | 36300 |
| 2-20123 | 2000mm | 22kW | 415V | 42650 |
| 2-22123 | 2200mm | 22kW | 415V | 55440 |
Learn more about this product with our datasheet.

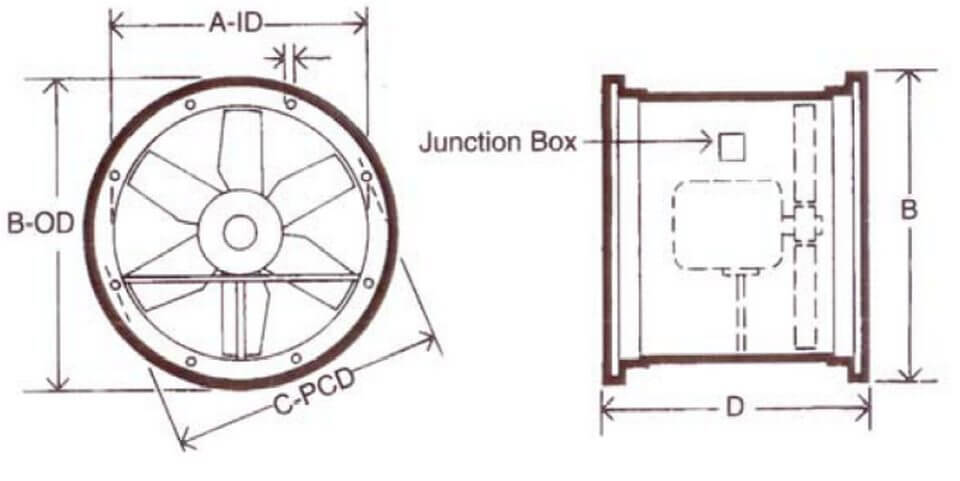

Learn more about this product with the image and table below.
| Fan Diameter | A | B | C | D | E | No. of E |
|---|---|---|---|---|---|---|
| 300 | 310 | 380 | 345 | 400 | 8 | 6 |
| 400 | 410 | 480 | 445 | 410 | 8 | 6 |
| 500 | 510 | 580 | 545 | 510 | 8 | 6 |
| 600 | 610 | 695 | 656 | 610 | 8 | 8 |
| 700 | 710 | 795 | 756 | 610 | 8 | 8 |
| 800 | 810 | 910 | 866 | 610 | 10 | 8 |
| 900 | 910 | 1010 | 965 | 610 | 10 | 8 |
| 1000 | 1010 | 1115 | 1065 | 810 | 12 | 8 |
| 1100 | 1115 | 1215 | 1170 | 810 | 12 | 8 |
| 1200 | 1220 | 1325 | 1276 | 810 | 12 | 12 |
| 1500 | 1525 | 1630 | 1575 | 910 | 12 | 12 |
This product also comes with the following optional extras. To add these to your order, simply get in touch with our team to discuss.
Need this product customised to suit your specific industry application or for a special project? Contact our team today.
