From: $3,495 Exc. GST
Choose your options here, or select a model using the Product Details table below.
Sorry, this product is unavailable. Please choose a different combination. Or contact us with the form below.
Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

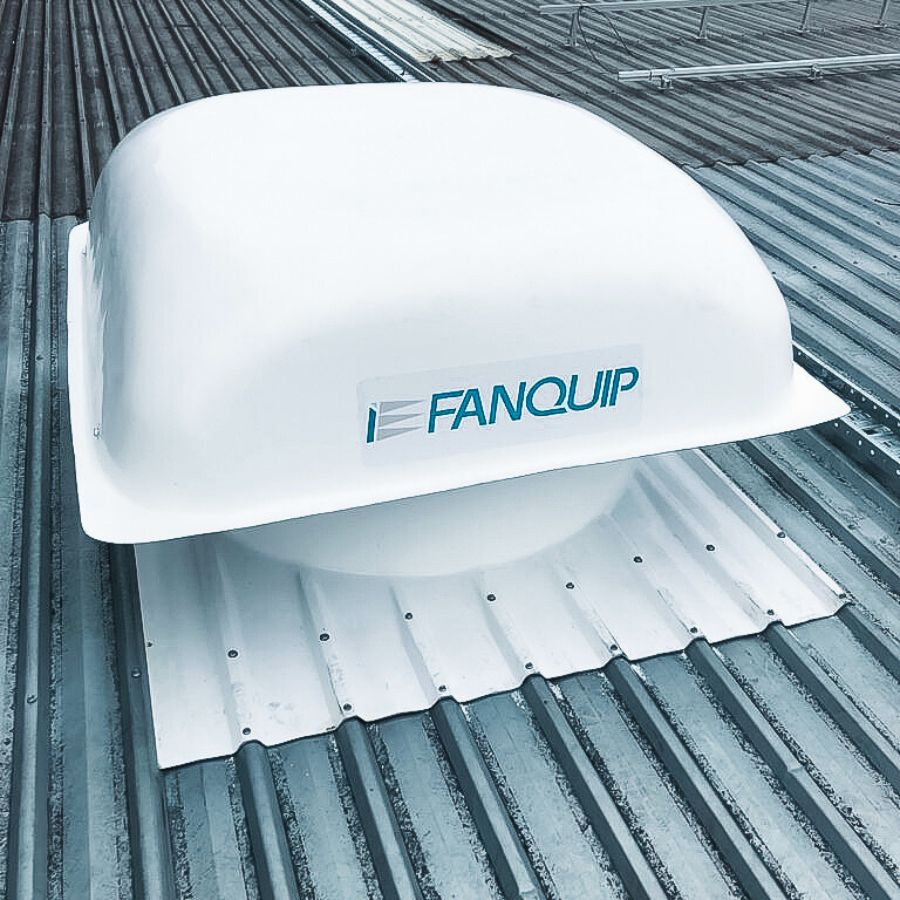

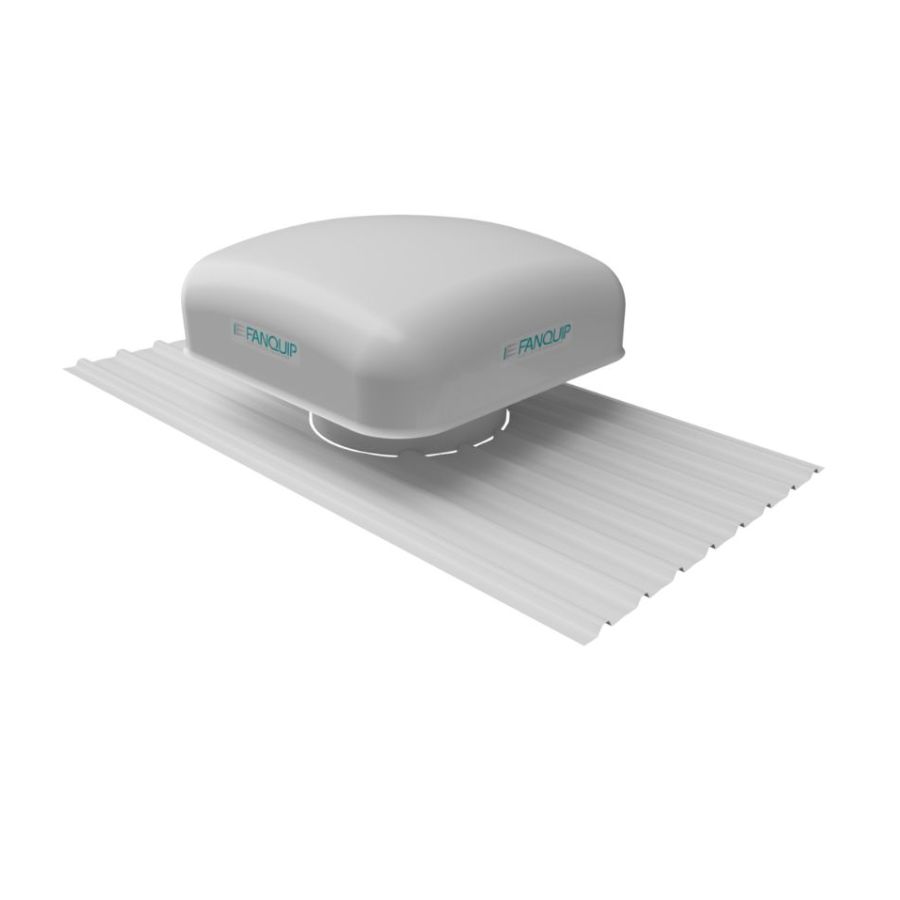

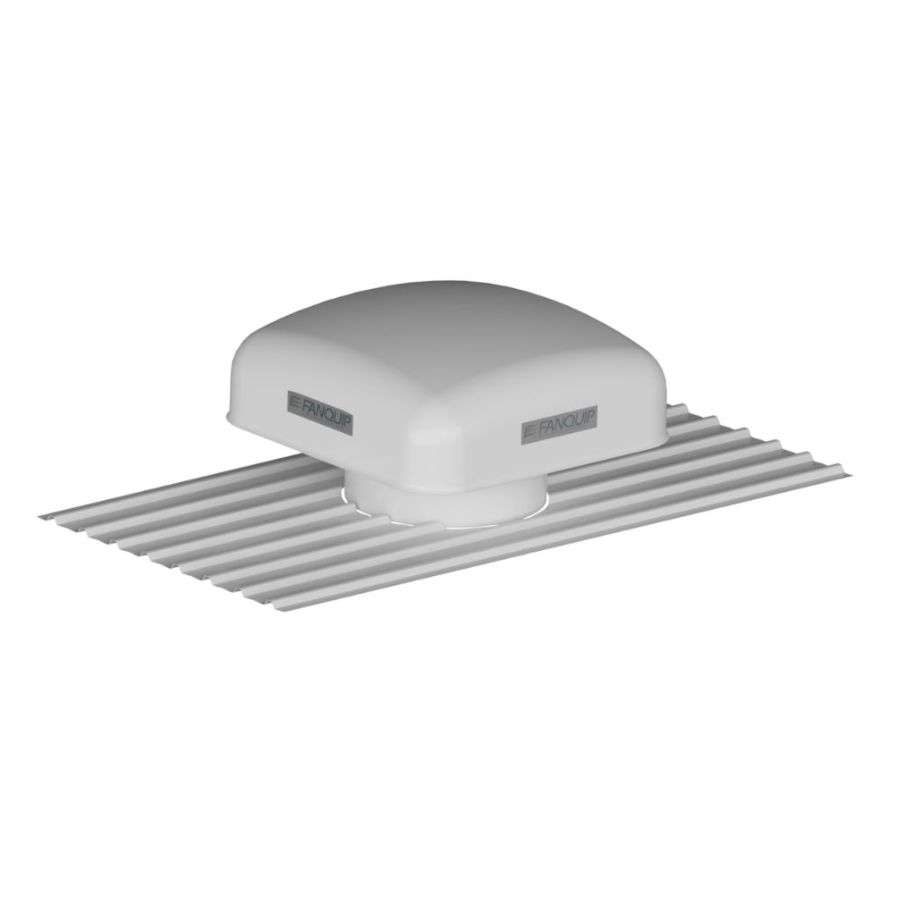

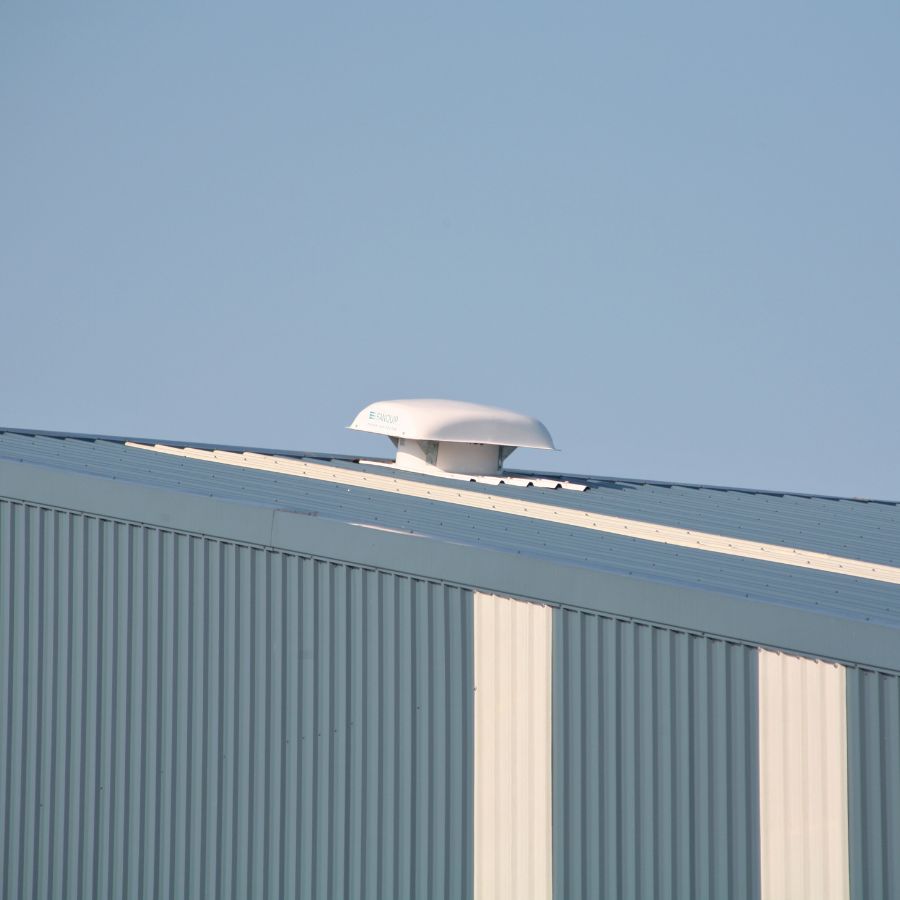

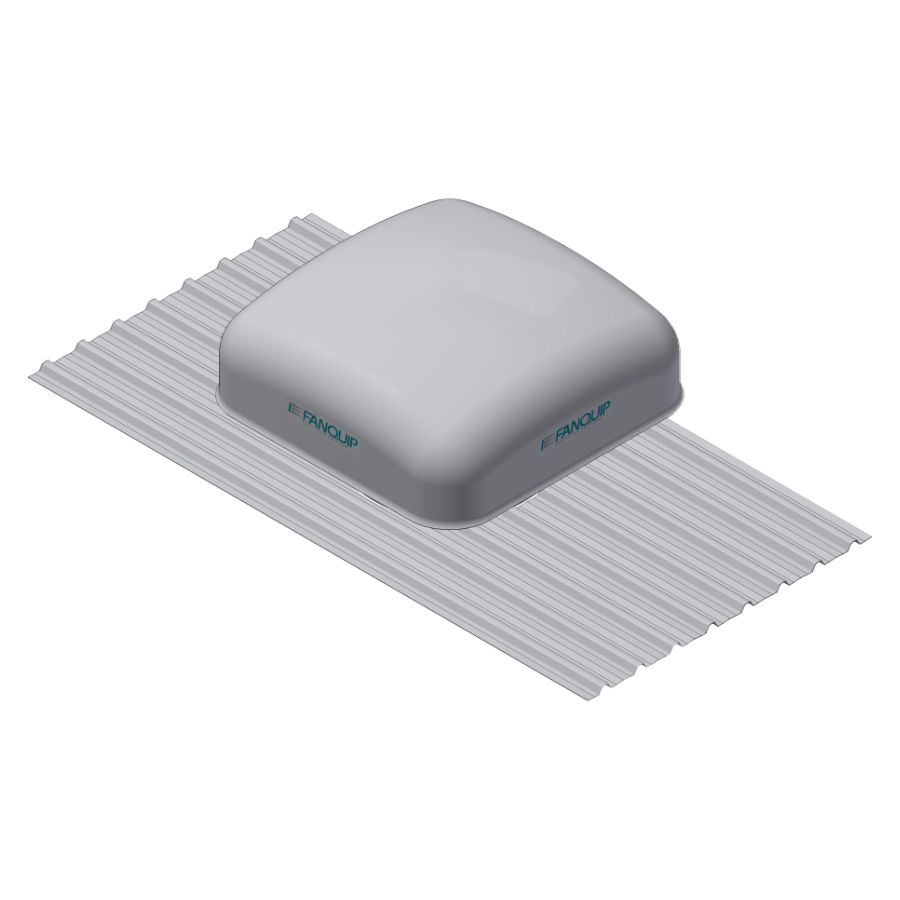

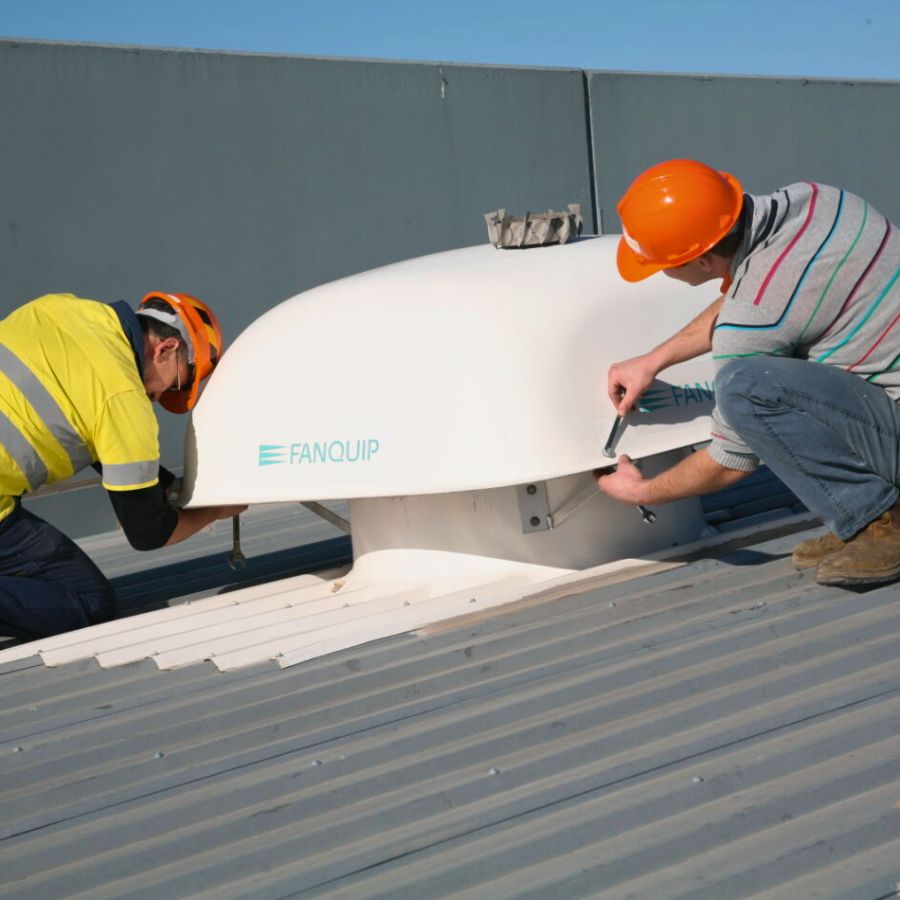

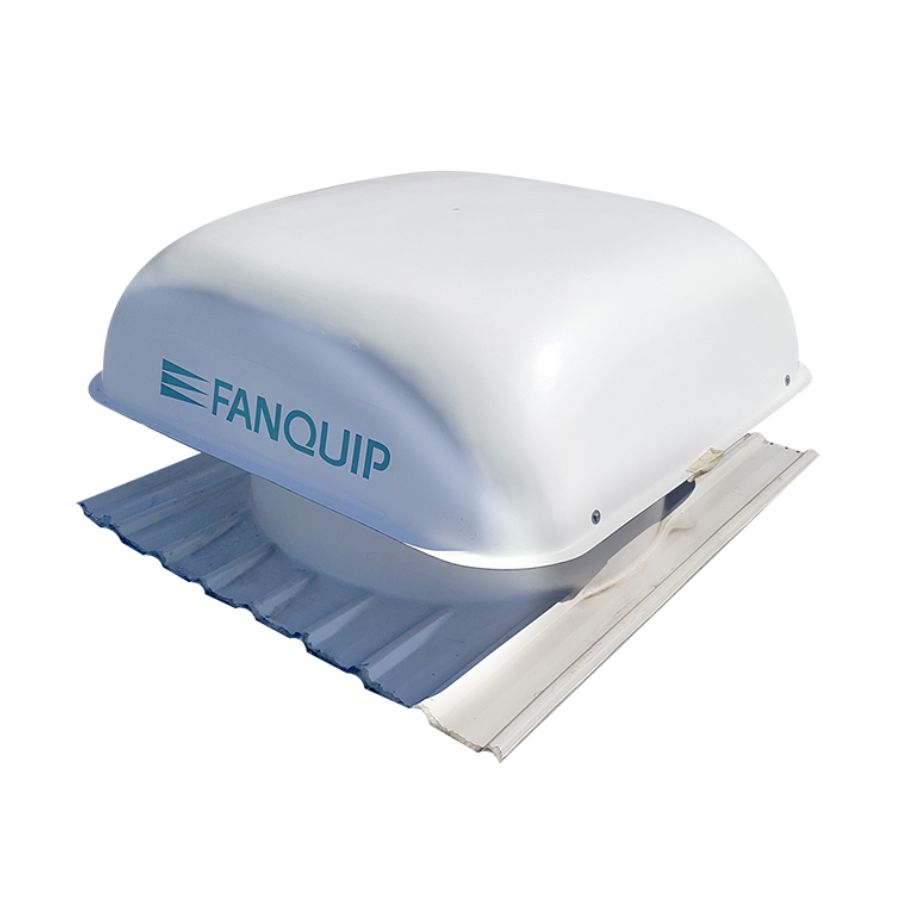

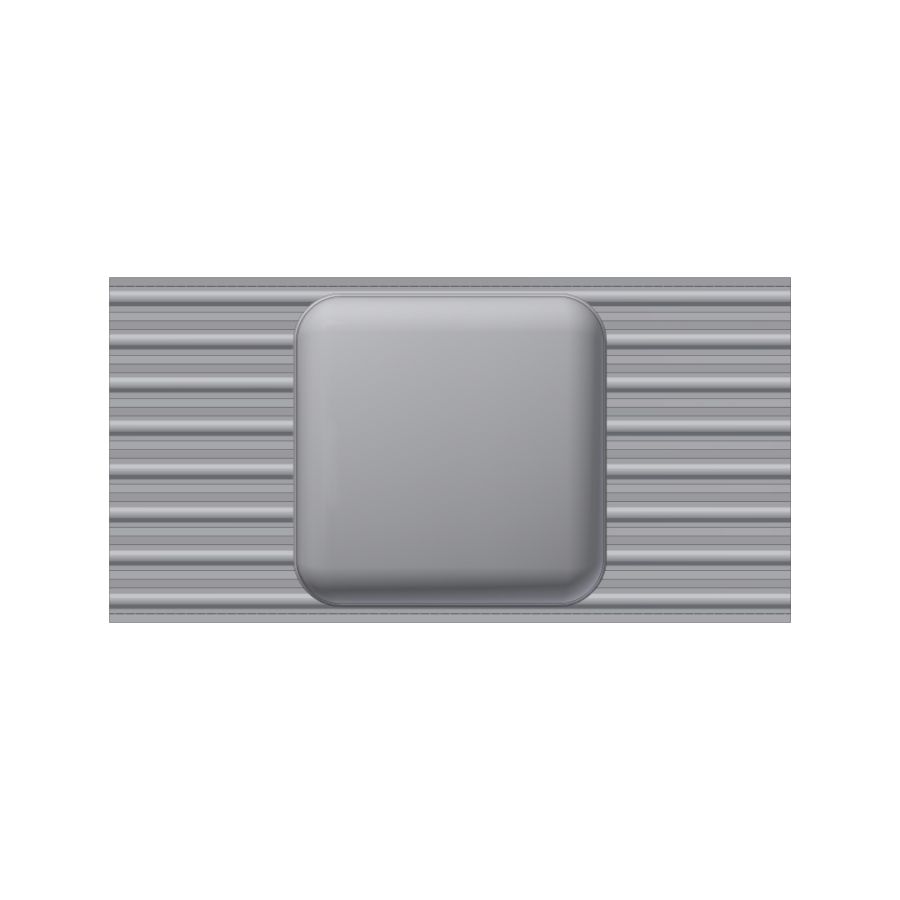

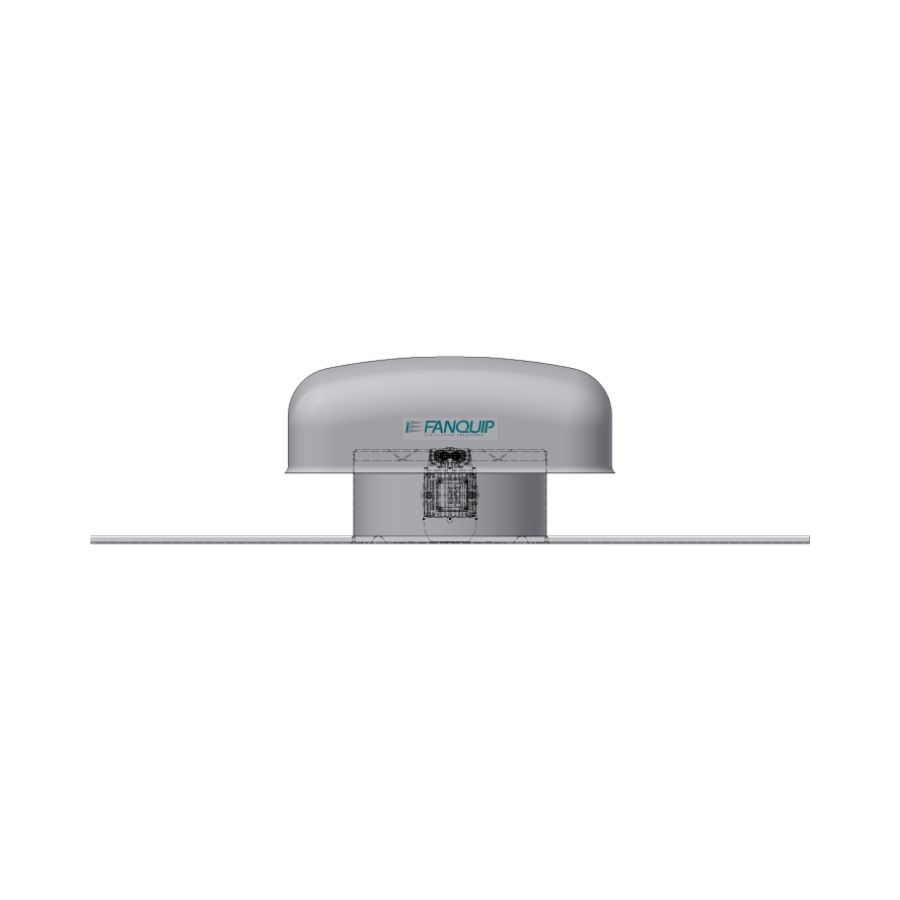

Our Profile Base Hooded Roof Fan is a completely weatherproof, easy to install roof exhaust or supply air fan for the removal of heat, steam, dust in commercial and industrial applications. These fans include a unique fibreglass profile base to match various popular roof profiles. This removes the need for upstands and flashings ensuring reduced installation time and costs.
| Model No. | Watts | Size | Poles | Voltage | Free Air Volume (L/s) | Full Load Amps (A) | Motor Speed (RPM) | Noise (dB(A) @ 3m) |
|---|---|---|---|---|---|---|---|---|
| 7-10123CI | 1.5kW | 1000mm | 8P | 415V | 10000 | 4.2 | 720 | 63 |
| 7-10123LS | 1.5kW | 1000mm | 8P | 415V | 10000 | 4.2 | 720 | 63 |
| 7-10123SD | 1.5kW | 1000mm | 8P | 415V | 10000 | 4.2 | 720 | 63 |
| 7-10123SS | 1.5kW | 1000mm | 8P | 415V | 10000 | 4.2 | 720 | 63 |
| 7-10123TD | 1.5kW | 1000mm | 8P | 415V | 10000 | 4.2 | 720 | 63 |
| 7-12123CI | 2.2kW | 1200mm | 8P | 415V | ||||
| 7-12123LS | 2.2kW | 1200mm | 8P | 415V | ||||
| 7-12123SD | 2.2kW | 1200mm | 8P | 415V | ||||
| 7-12123SS | 2.2kW | 1000mm | 8P | 415V | ||||
| 7-12123TD | 2.2kW | 1200mm | 8P | 415V | ||||
| 7-40241CI | 0.55kW | 400mm | 4P | 240V | ||||
| 7-40241LS | 0.55kW | 400mm | 4P | 240V | ||||
| 7-40241SD | 0.55kW | 400mm | 4P | 240V | ||||
| 7-40241SS | 0.55kW | 400mm | 4P | 240V | ||||
| 7-40243CI | 0.55kW | 400mm | 4P | 415V | ||||
| 7-40243LS | 0.55kW | 400mm | 4P | 415V | ||||
| 7-40243SD | 0.55kW | 400mm | 4P | 415V | ||||
| 7-40243SS | 0.55kW | 400mm | 4P | 415V | ||||
| 7-40243TD | 0.55kW | 400mm | 4P | 240V | ||||
| 7-60161CI | 0.37kW | 600mm | 6P | 240V | ||||
| 7-60161LS | 0.37kW | 600mm | 6P | 240V | ||||
| 7-60161SD | 0.37kW | 600mm | 6P | 240V | ||||
| 7-60161SS | 0.37kW | 600mm | 6P | 240V | ||||
| 7-60161TD | 0.37kW | 600mm | 6P | 240V | ||||
| 7-60163CI | 0.37kW | 600mm | 6P | 415V | ||||
| 7-60163DR | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60163LS | 0.37kW | 600mm | 6P | 415V | ||||
| 7-60163SD | 0.37kW | 600mm | 6P | 415V | ||||
| 7-60163SS | 0.37kW | 600mm | 6P | 415V | ||||
| 7-60163TD | 0.37kW | 600mm | 6P | 415V | ||||
| 7-60241CI | 1.1kW | 600mm | 4P | 240V | ||||
| 7-60241DR | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60241LS | 1.1kW | 600mm | 4P | 240V | ||||
| 7-60241SD | 1.1kW | 600mm | 4P | 240V | ||||
| 7-60241SS | 1.1kW | 600mm | 4P | 240V | ||||
| 7-60241TD | 1.1kW | 600mm | 4P | 240V | ||||
| 7-60243CI | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60243DR | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60243LS | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60243SD | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60243SS | 1.1kW | 600mm | 4P | 415V | ||||
| 7-60243TD | 1.1kW | 600mm | 4P | 415V | ||||
| 7-80123CI | 0.55kW | 800mm | 8P | 415V | ||||
| 7-80123LS | 0.55kW | 800mm | 8P | 415V | ||||
| 7-80123SD | 0.55kW | 800mm | 8P | 415V | ||||
| 7-80123SS | 0.55kW | 800mm | 8P | 415V | ||||
| 7-80123TD | 0.55kW | 800mm | 8P | 415V | ||||
| 7-80163CI | 1.1kW | 800mm | 6P | 415V | ||||
| 7-80163LS | 1.1kW | 800mm | 6P | 415V | ||||
| 7-80163SD | 1.1kW | 800mm | 6P | 415V | ||||
| 7-80163SS | 1.1kW | 800mm | 6P | 415V | ||||
| 7-80163TD | 1.1kW | 800mm | 6P | 415V |
| Model No. | Size (mm) | Voltage (V) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
7-10123CI, 7-10123LS, 7-10123SD, 7-10123SS, 7-10123TD, 7-12123CI, 7-12123LS, 7-12123SD, 7-12123SS, 7-12123TD, 7-40241CI, 7-40241LS, 7-40241SD, 7-40241SS, 7-40243CI, 7-40243LS, 7-40243SD, 7-40243SS, 7-40243TD, 7-60161CI, 7-60161LS, 7-60161SD, 7-60161SS, 7-60161TD, 7-60163CI, 7-60163DR, 7-60163LS, 7-60163SD, 7-60163SS, 7-60163TD, 7-60241CI, 7-60241DR, 7-60241LS, 7-60241SD, 7-60241SS, 7-60241TD, 7-60243CI, 7-60243DR, 7-60243LS, 7-60243SD, 7-60243SS, 7-60243TD, 7-80123CI, 7-80123LS, 7-80123SD, 7-80123SS, 7-80123TD, 7-80163CI, 7-80163LS, 7-80163SD, 7-80163SS, 7-80163TD | 1000mm, 1200mm, 400mm, 600mm, 800mm | 415v, 240v | 150 kg, 190 kg, 180 kg, 50 kg, 60 kg, 80 kg |
| Model No. | Watts | Size | Poles | Voltage |
|---|---|---|---|---|
| 7-10123CI | 1.5kW | 1000mm | 8P | 415V |
| 7-10123LS | 1.5kW | 1000mm | 8P | 415V |
| 7-10123SD | 1.5kW | 1000mm | 8P | 415V |
| 7-10123SS | 1.5kW | 1000mm | 8P | 415V |
| 7-10123TD | 1.5kW | 1000mm | 8P | 415V |
| 7-12123CI | 2.2kW | 1200mm | 8P | 415V |
| 7-12123LS | 2.2kW | 1200mm | 8P | 415V |
| 7-12123SD | 2.2kW | 1200mm | 8P | 415V |
| 7-12123SS | 2.2kW | 1000mm | 8P | 415V |
| 7-12123TD | 2.2kW | 1200mm | 8P | 415V |
| 7-40241CI | 0.55kW | 400mm | 4P | 240V |
| 7-40241LS | 0.55kW | 400mm | 4P | 240V |
| 7-40241SD | 0.55kW | 400mm | 4P | 240V |
| 7-40241SS | 0.55kW | 400mm | 4P | 240V |
| 7-40243CI | 0.55kW | 400mm | 4P | 415V |
| 7-40243LS | 0.55kW | 400mm | 4P | 415V |
| 7-40243SD | 0.55kW | 400mm | 4P | 415V |
| 7-40243SS | 0.55kW | 400mm | 4P | 415V |
| 7-40243TD | 0.55kW | 400mm | 4P | 240V |
| 7-60161CI | 0.37kW | 600mm | 6P | 240V |
| 7-60161LS | 0.37kW | 600mm | 6P | 240V |
| 7-60161SD | 0.37kW | 600mm | 6P | 240V |
| 7-60161SS | 0.37kW | 600mm | 6P | 240V |
| 7-60161TD | 0.37kW | 600mm | 6P | 240V |
| 7-60163CI | 0.37kW | 600mm | 6P | 415V |
| 7-60163DR | 1.1kW | 600mm | 4P | 415V |
| 7-60163LS | 0.37kW | 600mm | 6P | 415V |
| 7-60163SD | 0.37kW | 600mm | 6P | 415V |
| 7-60163SS | 0.37kW | 600mm | 6P | 415V |
| 7-60163TD | 0.37kW | 600mm | 6P | 415V |
| 7-60241CI | 1.1kW | 600mm | 4P | 240V |
| 7-60241DR | 1.1kW | 600mm | 4P | 415V |
| 7-60241LS | 1.1kW | 600mm | 4P | 240V |
| 7-60241SD | 1.1kW | 600mm | 4P | 240V |
| 7-60241SS | 1.1kW | 600mm | 4P | 240V |
| 7-60241TD | 1.1kW | 600mm | 4P | 240V |
| 7-60243CI | 1.1kW | 600mm | 4P | 415V |
| 7-60243DR | 1.1kW | 600mm | 4P | 415V |
| 7-60243LS | 1.1kW | 600mm | 4P | 415V |
| 7-60243SD | 1.1kW | 600mm | 4P | 415V |
| 7-60243SS | 1.1kW | 600mm | 4P | 415V |
| 7-60243TD | 1.1kW | 600mm | 4P | 415V |
| 7-80123CI | 0.55kW | 800mm | 8P | 415V |
| 7-80123LS | 0.55kW | 800mm | 8P | 415V |
| 7-80123SD | 0.55kW | 800mm | 8P | 415V |
| 7-80123SS | 0.55kW | 800mm | 8P | 415V |
| 7-80123TD | 0.55kW | 800mm | 8P | 415V |
| 7-80163CI | 1.1kW | 800mm | 6P | 415V |
| 7-80163LS | 1.1kW | 800mm | 6P | 415V |
| 7-80163SD | 1.1kW | 800mm | 6P | 415V |
| 7-80163SS | 1.1kW | 800mm | 6P | 415V |
| 7-80163TD | 1.1kW | 800mm | 6P | 415V |

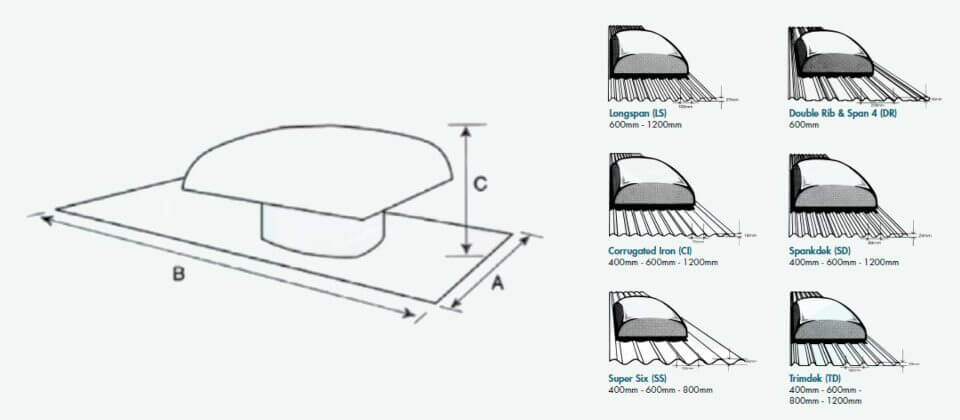

| Fan Diameter | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 400 | 400 | 180 | 500 | 730 | 850 | 1500 |
| 600 | 612 | 230 | 500 | 1060 | 900 | 1450 |
| 800 | 802 | 485 | 780 | 1380 | 980 | 2070 |
| 1000 | 1010 | 470 | 780 | 1380 | 1590 | 2150 |
| 1200 | 1229 | 450 | 850 | 1460 | 1630 | 2000 |
