FEATURE: Explore our ventilation guides to find your solution.

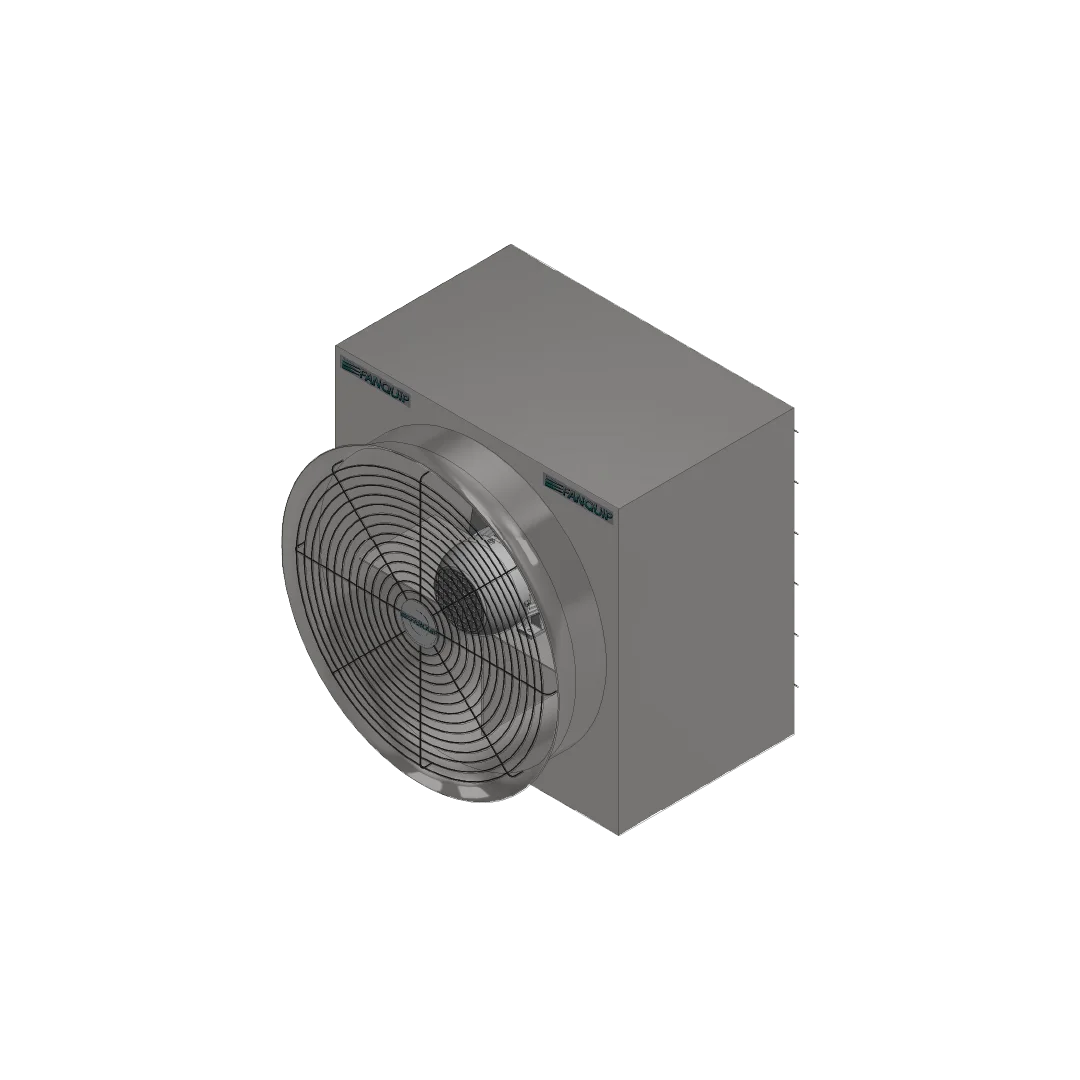

Side Wall Exhaust FanSide Wall Exhaust FanSide Wall Exhaust FanSide Wall Exhaust Side Solid View with DimensionsSide Wall Exhaust Fan 3DSide Wall Exhaust Fan CAD

Side Wall Exhaust Fans

0/5

From: $2,833 Exc. GST

Choose your options here, or select a model using the Product Details table below.

+

Sorry, this product is unavailable. Please choose a different combination. Or contact us with the form below.

Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

Product details

Heavy duty weatherproof design and galvanised construction used for extracting large volumes heat, steam or dust from industrial or agricultural buildings

  • Aluminium gravity closing damper,
  • GRP adjustable pitch blades
  • Hot dip galvanised casing / galvanised housing
  • Inlet finger guard
  • IP55 Motor

Choose your Options Here.

Features

Accessories

Specifications

Dimensions

Options

Reviews

Enquiry

Datasheets

Features

  • Aluminium gravity closing damper,
  • GRP adjustable pitch blades
  • Hot dip galvanised casing / galvanised housing
  • Inlet finger guard
  • IP55 Motor

Accessories

Enquire for price

0/5

Enquire for price

0/5

Specifications​

Model No.Size (mm)Voltage (V)Weight (kg)Dimensions (cm)
18-10123,
18-30241,
18-30243,
18-40241,
18-40243,
18-50241,
18-50243,
18-60161,
18-60163,
18-60241,
18-60243,
18-80163
1000mm,
300mm,
400mm,
500mm,
600mm,
800mm
415v,
240v
130 kg,
25 kg,
35 kg,
55 kg,
70 kg,
95 kg

Dimensions

Fan DiameterABCDE
300310380410350525
400410480410350525
500510580410350525
600610680410350525
800810880460400575
100010101216460400575
120012201290510450625

Options

  • Aluminium adjustable pitch blades
  • Exd
  • ExnA
  • Extd
  • Hazardous location rated – Exe
  • IP56 or IP66 motor
  • Motorised damper
  • Powder coated finish
  • Stainless steel casing
