From: $2,836 Exc. GST
Choose your options here, or select a model using the Product Details table below.
Sorry, this product is unavailable. Please choose a different combination. Or contact us with the form below.
Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

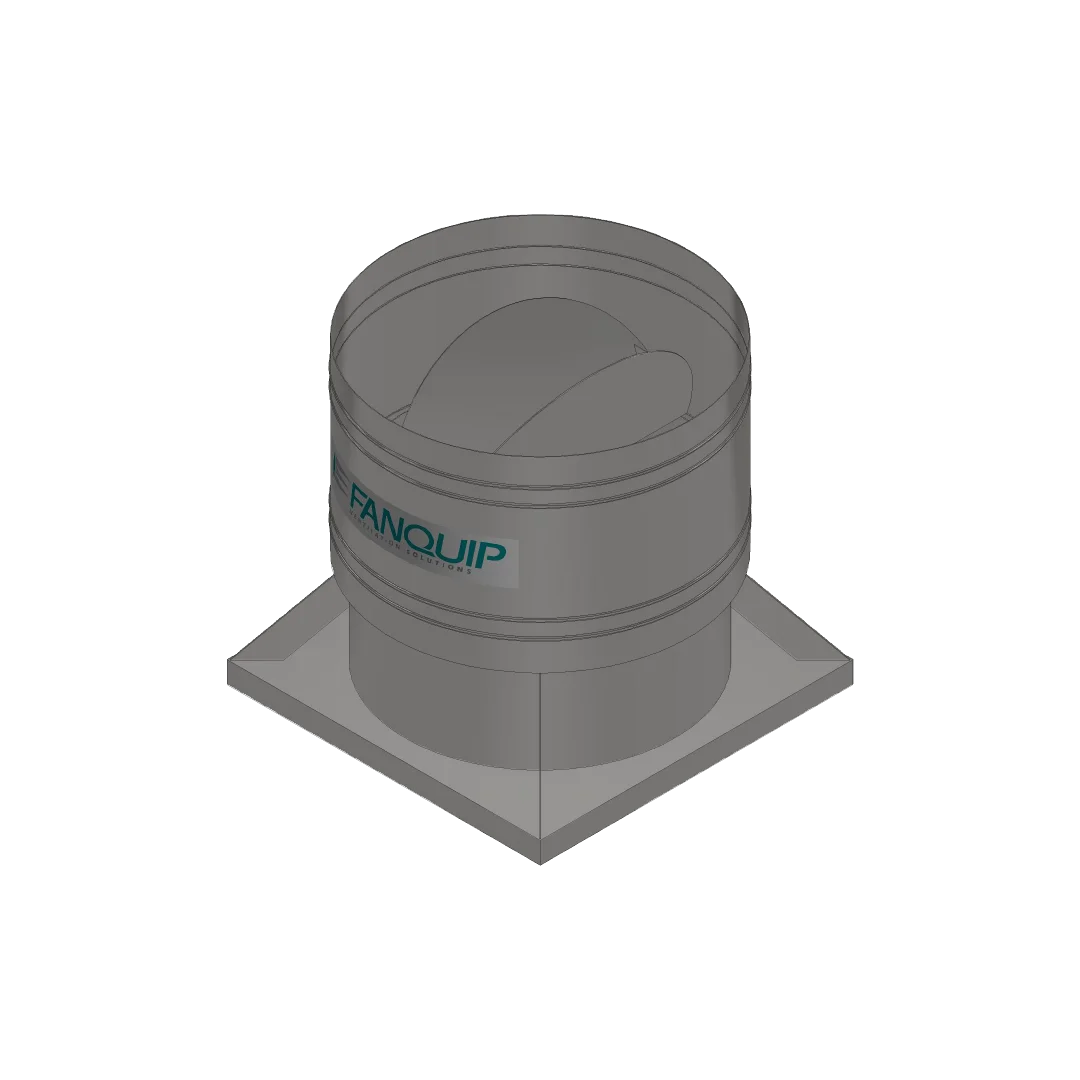

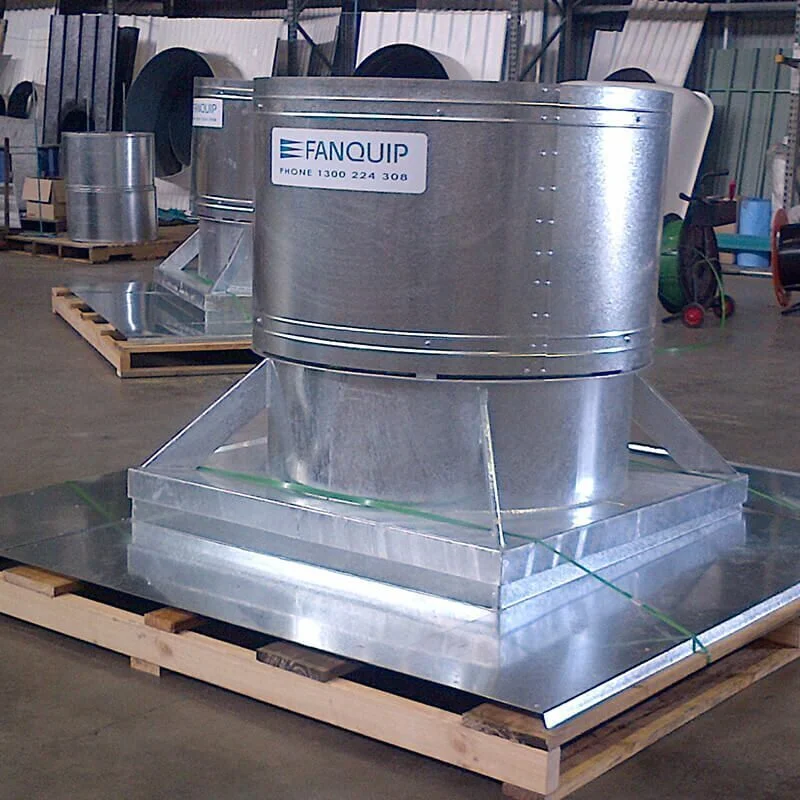

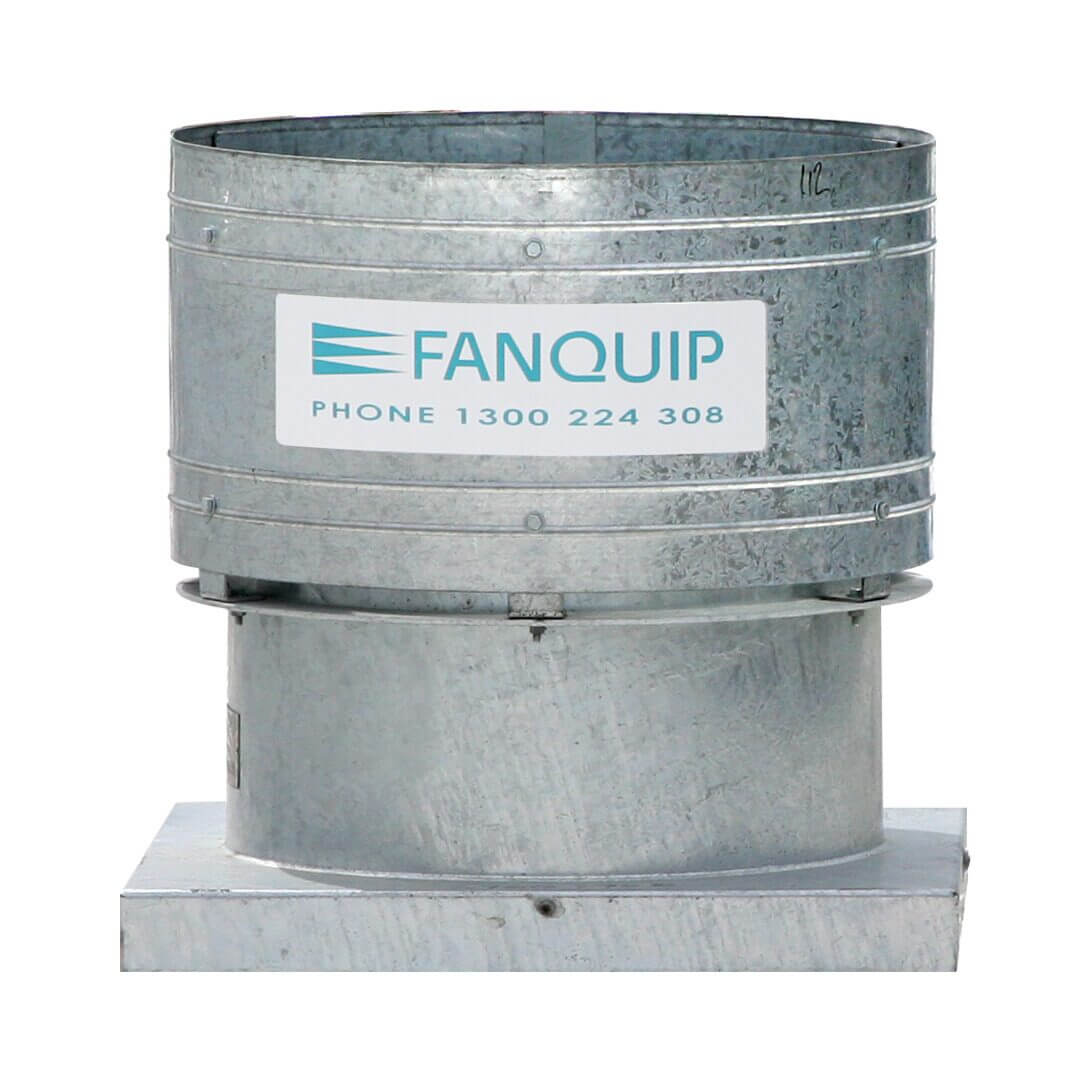

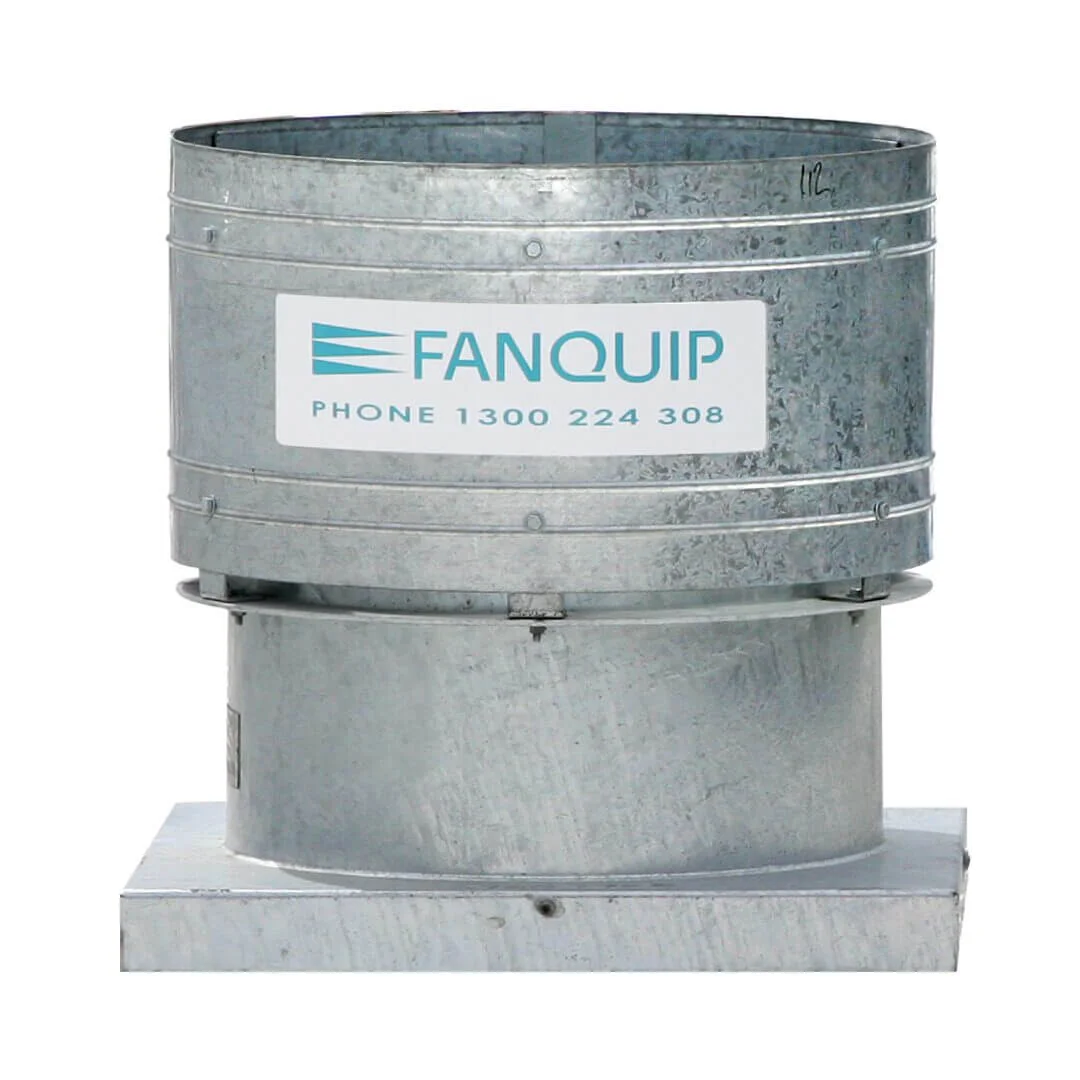

The Vertical Discharge Roof Fan is used in a wide range of commercial and industrial applications for the vertical exhaust of heat, steam, dust, smoke and explosive gases.
| Model No. | Watts | Size | Voltage | Free Air Volume (L/s) | Full Load Amps (A) | Motor Speed (RPM) | Noise (dB(A) @ 3m) | Weight |
|---|---|---|---|---|---|---|---|---|
| 3-30241 | 0.37kW | 300mm | 240V | 600 | 2.4 | 1440 | 48 | 30 |
| 3-30481 | 0.55kW | 300mm | 240V | 1100 | 3.3 | 2880 | 62 | 30 |
| 3-30243 | 0.37kW | 300mm | 415V | 600 | 1.03 | 1440 | 48 | 30 |
| 3-30483 | 0.55kW | 300mm | 415V | 1100 | 1.4 | 2880 | 62 | 30 |
| 3-40241 | 0.55kW | 400mm | 240V | 1480 | 3.8 | 1440 | 50 | 36 |
| 3-40243 | 0.55kW | 400mm | 415V | 1480 | 1.63 | 1440 | 50 | 36 |
| 3-50241 | 0.75kW | 500mm | 240V | 2350 | 4.8 | 1440 | 60 | 62 |
| 3-50243 | 0.75kW | 500mm | 415V | 2350 | 1.94 | 1440 | 60 | 62 |
| 3-60161 | 0.37kW | 600mm | 240V | 3010 | 2.6 | 960 | 60 | 75 |
| 3-60163 | 0.37kW | 600mm | 415V | 3010 | 1.32 | 960 | 60 | 75 |
| 3-60241 | 1.1kW | 600mm | 240V | 4300 | 6.6 | 1440 | 68 | 75 |
| 3-60243 | 1.1kW | 600mm | 415V | 4300 | 2.6 | 1440 | 68 | 75 |
| 3-80123 | 0.55kW | 800mm | 415V | 5400 | 2.1 | 720 | 59 | 100 |
| 3-80163 | 1.1kW | 800mm | 415V | 6800 | 3 | 960 | 65 | 100 |
| 3-10123 | 1.5kW | 1000mm | 415V | 10000 | 4.2 | 720 | 63 | 150 |
| 3-12123 | 2.2kW | 1200mm | 415V | 14000 | 6 | 720 | 69 | 180 |
| 3-15123 | 3kW | 1500mm | 415V | 19000 | 7.8 | 720 | 72 | 260 |

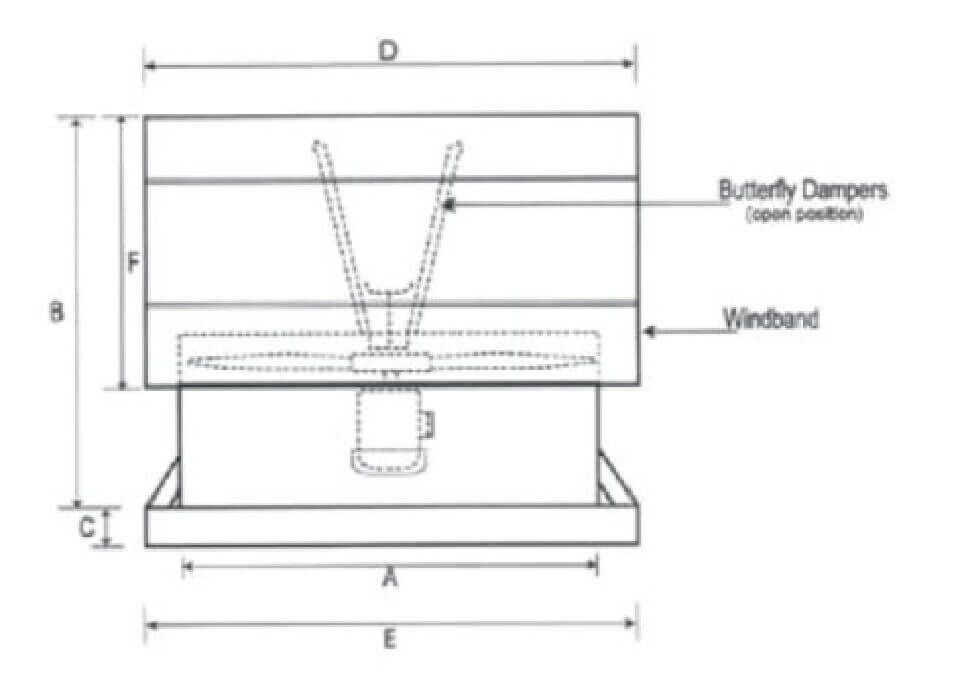

| Fan Diameter | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 300 | 310 | 500 | 60 | 410 | 430 | 300 |
| 400 | 410 | 500 | 60 | 510 | 540 | 300 |
| 500 | 510 | 600 | 75 | 610 | 650 | 400 |
| 600 | 610 | 600 | 75 | 710 | 760 | 400 |
| 700 | 710 | 750 | 75 | 810 | 900 | 500 |
| 800 | 810 | 750 | 75 | 910 | 1060 | 500 |
| 900 | 910 | 950 | 75 | 1010 | 1160 | 600 |
| 1000 | 1010 | 1050 | 80 | 1110 | 1260 | 700 |
| 1100 | 1120 | 1110 | 100 | 1210 | 1360 | 700 |
| 1200 | 1220 | 1150 | 100 | 1300 | 1460 | 800 |
| 1500 | 1520 | 1300 | 100 | 1610 | 1760 | 900 |
Need this product customised to suit your specific industry application or for a special project?
Contact our team today.
We manufacture and stock a complete range of fans and equipment, from Pedestal Fans to Mobile Mancoolers and from End Wall Exhaust Fans to Hooded Roof Fans.

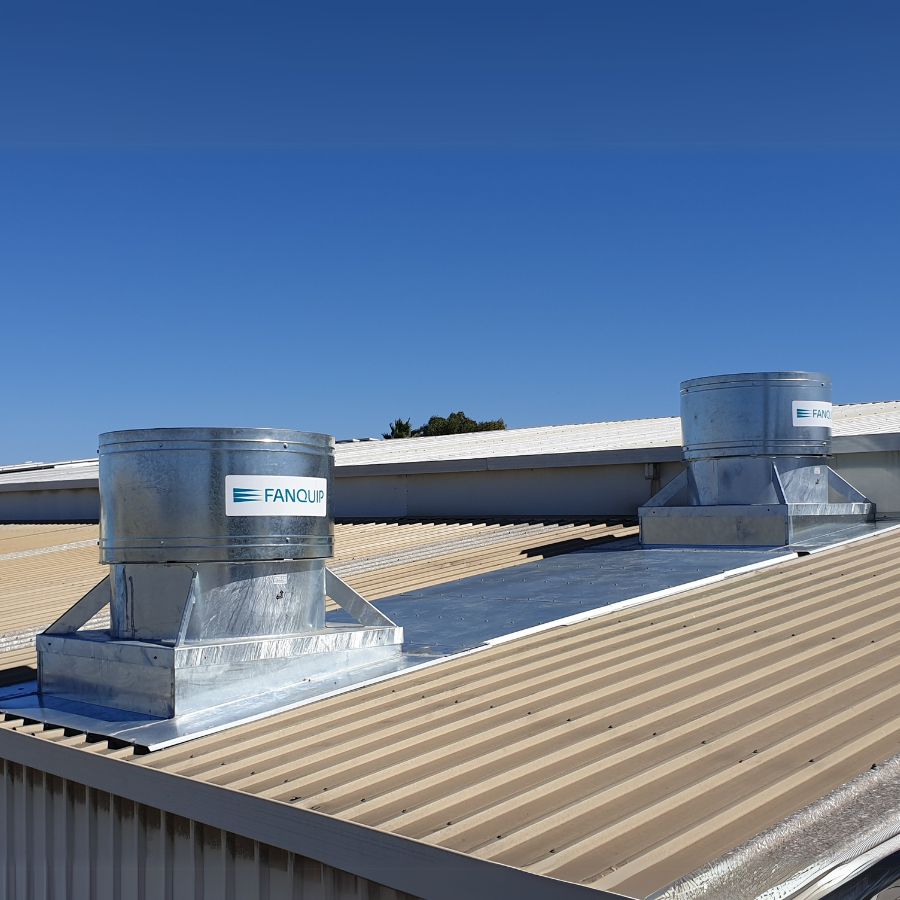

Here are just a few examples of projects we have completed recently.
