Wall Plate Exhaust Fan

☆☆☆☆☆ 0/5

Leave a Review

From: $2,118 Exc. GST

Choose your options here, or select a model using the Product Details table below.

− +

Sorry, this product is unavailable. Please choose a different combination. Or contact us with the form below.

Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

Product details

Very versatile in their numerous and varied applications as an exhaust or supply air fan. Well suited for environments requiring the removal of heat, steam and dust.

  • GRP adjustable pitch blades
  • Inlet finger guard
  • IP55 Motor
  • Premium powder coated steel casing

Choose your options here.

Model No.WattsSizePolesVoltageFree Air Volume (L/s)Full Load Amps (A)Motor Speed (RPM)Noise (dB(A) @ 3m)Impeller
4-101231.5kW1000mm8P415V108004.272063
4-121232.2kW1200mm8P415V15000672069
4-151233kW1500mm8P415V220007.872072
4-302410.37kW300mm4P240V6542.41440496Bl, P160, 40Deg, 395GRP
4-302430.37kW300mm4P415V6541.031440496Bl, P160, 40Deg, 395GRP
4-402410.55kW400mm4P240V15003.81440506Bl, P160, 36Deg, 395GRP
4-402430.55kW400mm4P415V15001.61440506Bl, P160, 36Deg, 395GRP
4-501610.37kW500mm6P240V15502.496051
4-501630.37kW500mm6P415V15501.3296051
4-502410.75kW500mm4P240V24504.5144060
4-502430.75kW500mm4P415V24501.94144060
4-601610.37kW600mm6P240V32742.4960606Bl, P160, 24Deg, 395GRP
4-601630.37kW600mm6P415V32741.32960606Bl, P160, 24Deg, 395GRP
4-602411.1kW600mm4P240V44166.61440686Bl, P160, 24Deg, 395GRP
4-602431.1kW600mm4P415V44162.61440686Bl, P160, 24Deg, 395GRP
4-801230.55kW800mm8P415V56792.1720596Bl, P190, 24Deg, 395GRP
4-801631.1kW800mm6P415V7000396065

Features

Accessories

Specifications

Dimensions

Options

Reviews

Enquiry

Datasheets

Features

  • GRP adjustable pitch blades
  • Inlet finger guard
  • IP55 Motor
  • Premium powder coated steel casing

Accessories

Roll Over Cowl

Enquire for price

☆☆☆☆☆ 0/5
Roll Over Cowl

Impellers

Enquire for price

☆☆☆☆☆ 0/5
Impellers

Variable Speed Drives

Enquire for price

☆☆☆☆☆ 0/5
VSD

Specifications​

Model No.Size (mm)Voltage (V)Weight (kg)Dimensions (cm)
4-10123,
4-12123,
4-15123,
4-30241,
4-30243,
4-40241,
4-40243,
4-50161,
4-50163,
4-50241,
4-50243,
4-60161,
4-60163,
4-60241,
4-60243,
4-80123,
4-80163
1000mm,
1200mm,
1500mm,
300mm,
400mm,
500mm,
600mm,
800mm
415v,
240v
120 kg,
150 kg,
180 kg,
20 kg,
30 kg,
50 kg,
65 kg,
85 kg
Model No.WattsSizePolesVoltageImpeller
4-101231.5kW1000mm8P415V
4-121232.2kW1200mm8P415V
4-151233kW1500mm8P415V
4-302410.37kW300mm4P240V6Bl, P160, 40Deg, 395GRP
4-302430.37kW300mm4P415V6Bl, P160, 40Deg, 395GRP
4-402410.55kW400mm4P240V6Bl, P160, 36Deg, 395GRP
4-402430.55kW400mm4P415V6Bl, P160, 36Deg, 395GRP
4-501610.37kW500mm6P240V
4-501630.37kW500mm6P415V
4-502410.75kW500mm4P240V
4-502430.75kW500mm4P415V
4-601610.37kW600mm6P240V6Bl, P160, 24Deg, 395GRP
4-601630.37kW600mm6P415V6Bl, P160, 24Deg, 395GRP
4-602411.1kW600mm4P240V6Bl, P160, 24Deg, 395GRP
4-602431.1kW600mm4P415V6Bl, P160, 24Deg, 395GRP
4-801230.55kW800mm8P415V6Bl, P190, 24Deg, 395GRP
4-801631.1kW800mm6P415V

Dimensions

Click to see the datasheet

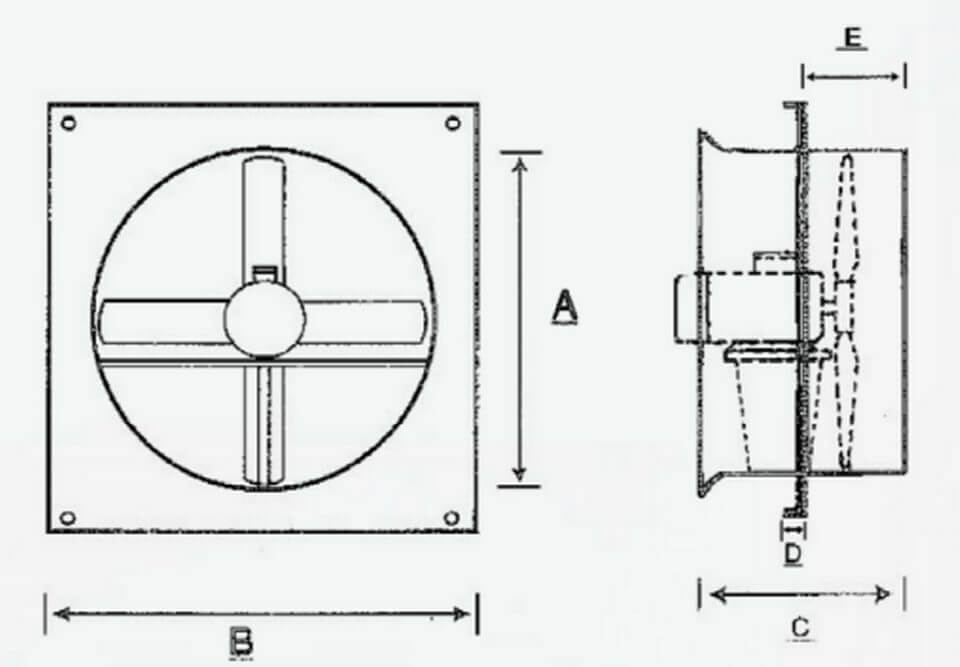

Dimensions for Fanquip's Wall Plate Exhaust Fan
Fan DiameterABCDEGHI
3003103803502517532610330
4004105103502517543810450
5005106103502017553010545
6006107603503017567012645
8008109604002522090012845
100010101150400302001070121050
120012201360450302251238141260
150015251665450402251558141565
180018301970610403051863141870

Options

  • Aluminium adjustable pitch blades
  • Aluminium or stainless steel casings
  • Exd
  • ExnA
  • Extd
  • Hazardous location rated – Exe
  • Hot dip galvanised finish
  • IP56 or IP66 motor
  • Outlet finger guard
  • Supply Air version available

Reviews

Reviews

There are no reviews yet.

Be the first to review “Wall Plate Exhaust Fan”

Your email address will not be published. Required fields are marked *

Enquiry

Need this product customised to suit your specific industry application or for a special project?
Contact our team today.

Datasheets

Click to see the datasheet
